| Model Series | FTV-P Series |
| Product Type | Non Inverter |
| Refrigerant | R32 |
| Heat Exchanger | Hydrophillic Blue Fin |
| Controller | Wireless/ Wired (*Wired Model DO NOT Have Built-In Wi-Fi) |
| Power Supply (V/Ph/Hz) | 220-240/1/50 |
| Horsepower (hp) | 1.0, 1.5, 2.0, 2.5 |

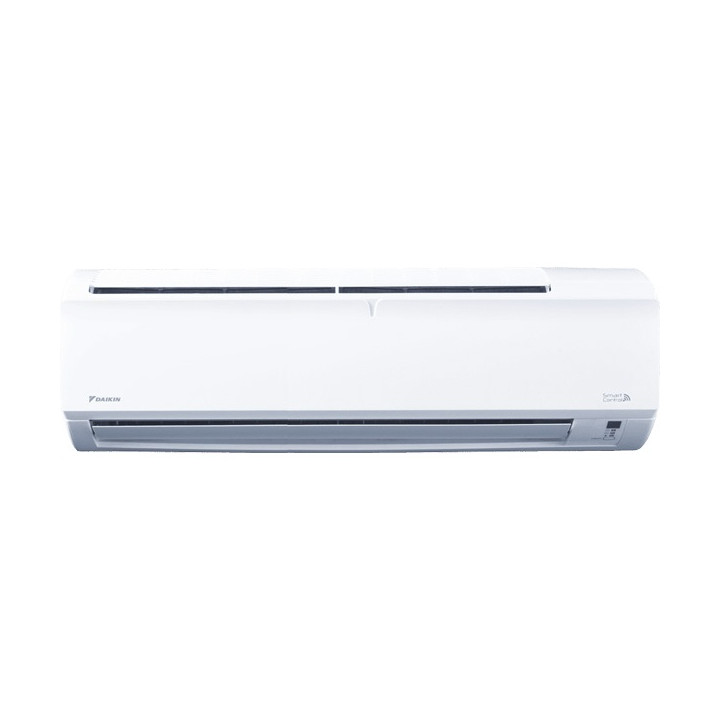

| Indoor Unit Model | 1.0hp: FTV28PBV1MF; 1.5hp: FTV35PBV1MF; 2.0hp: FTV50PBV1MF; 2.5hp: FTV60PBV1MF |

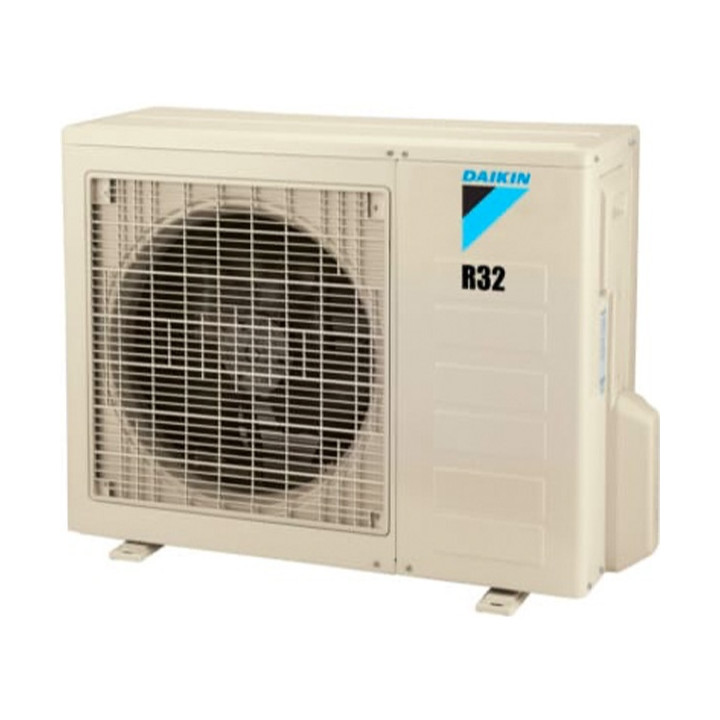

| Outdoor Unit Model | 1.0hp: RV28PBV1M; 1.5hp: RV35PBV1M; 2.0hp: RV50PBV1M; 2.5hp: RV60PBV1M |
| Rated Cooling Capacity (Btu/h) | 1.0hp: 9,500; 1.5hp: 12,000; 2.0hp: 18,000; 2.5hp: 22,500 |
| Rated Power Consumption (W) | 1.0hp: 865; 1.5hp: 1,040; 2.0hp: 1,660; 2.5hp: 2,130 |
| Rated Running Current (A) | 1.0hp: 3.86; 1.5hp: 4.61; 2.0hp: 7.38; 2.5hp: 9.52 |
| CSPF (Wh/Wh) | 1.0hp: 3.42; 1.5hp: 3.59; 2.0hp: 3.37; 2.5hp: 3.28 |
| Energy Rating | 1.0hp: 3 star; 1.5hp: 3 star; 2.0hp: 3 star; 2.5hp: 3 star |
| Air Flow Rate (CFM) | 1.0hp: 342; 1.5hp: 355; 2.0hp: 531; 2.5hp: 614 |
| Sound Pressure Level - Indoor (H/M/L/Q) (dBA) | 1.0hp: 37 / 33 / 27 / 25; 1.5hp: 39 / 35 / 29 / 28; 2.0hp: 42 / 39 / 36 / 35; 2.5hp: 46 / 43 / 39 / 37 |
| Dimension - Indoor (H x W x D) (cm) | 1.0hp: 28.8 x 80.0 x 21.2; 1.5hp: 28.8 x 80.0 x 21.2; 2.0hp: 31.0 x 106.5 x 22.8; 2.5hp: 31.0 x 106.5 x 22.8 |
| Dimension - Outdoor (H x W x D) (cm) | 1.0hp: 55.0 x 65.8 x 27.3; 1.5hp: 55.0 x 65.8 x 27.3; 2.0hp: 61.5 x 84.5 x 30.0; 2.5hp: 61.5 x 84.5 x 30.0 |
| Unit weight - Indoor (kg) | 1.0hp: 9.0; 1.5hp: 9.0; 2.0hp: 14.0; 2.5hp: 14.0 |
| Unit weight - Outdoor (kg) | 1.0hp: 25; 1.5hp: 28; 2.0hp: 40; 2.5hp: 46 |
| Copper Pipe Size - Liquid (mm) | 1.0hp: 6.35; 1.5hp: 6.35; 2.0hp: 6.35; 2.5hp: 6.35 |
| Copper Pipe Size - Gas (mm) | 1.0hp: 9.52; 1.5hp: 9.52; 2.0hp: 12.7; 2.5hp: 12.7 |
| Retail Sales Price | 1.0hp: RM1,480.00; 1.5hp: RM1,870.00; 2.0hp: RM2,870.00; 2.5hp: RM3,240.00 |
