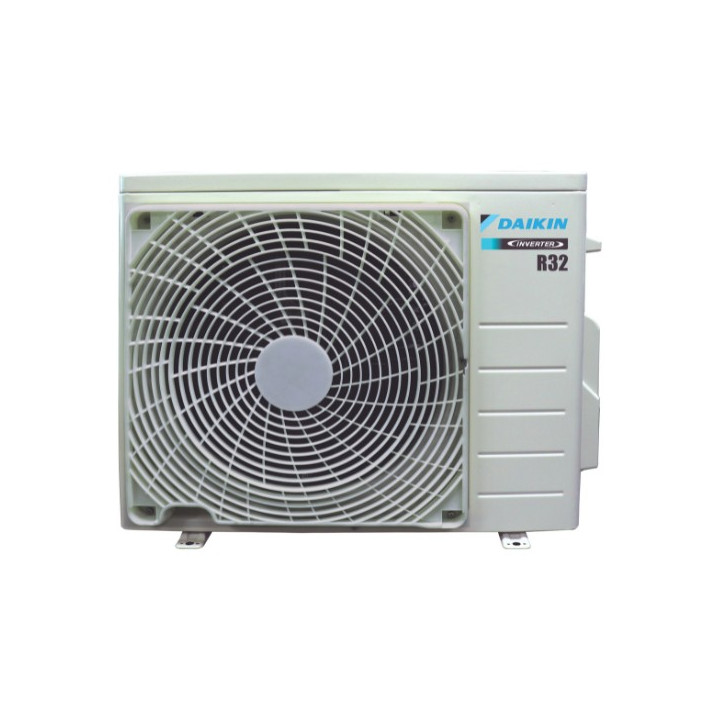

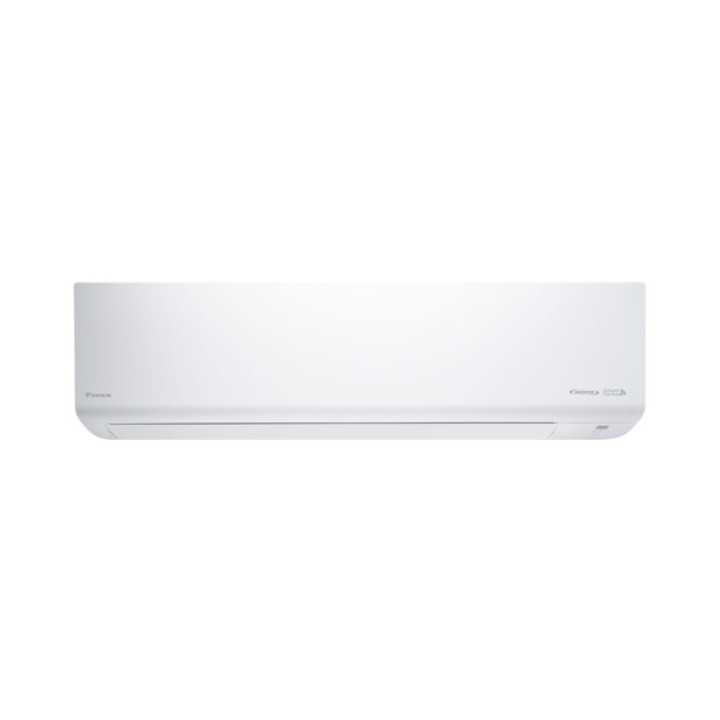

Daikin FTKB75AV1M/RKB75AV1M 3.0HP Inverter Air Conditioner (R32)

Name: Daikin FTKB75AV1M/RKB75AV1M 3.0HP Inverter Air Conditioner (R32)
Brand: Daikin
SKU: FTKB75A/RKB75A-3WMY-LF
Price: 3928 MYR
Availability: InStock

Daikin

RM4,499.00 (Save RM571.00)

RM3,928.00

No tax

The Daikin FTKB Series (R32) 3.0HP Inverter air conditioner combines high-capacity cooling performance with advanced energy efficiency. Featuring a robust Microchannel heat exchanger, the unit utilizes eco-friendly R32 refrigerant. It includes smart features like the Gin-Ion Blue Filter for enhanced air quality, Econo mode for optimized energy consumption, and built-in Smart Control capabilities, making it a reliable and convenient solution for large indoor spaces requiring consistent, quiet, and powerful climate management.

Product Overview

Key Features

Inverter technology for efficient and stable temperature control
Gin-Ion Blue Filter decomposes viruses and inhibits fungal growth
Econo Mode limits maximum power consumption for energy savings
Built-in Smart Control allows smartphone app-based remote operation
Microchannel heat exchanger provides durable heat exchange performance
Removable drain pan for simplified maintenance and cleaning
Anti-corrosion treatment on heat exchanger fins for increased longevity

Specifications

Specification	Detail
Product Name	FTKB Series (R32)
1.0 Horsepower - Series	FTKB-A Series
1.0 Horsepower - Indoor	FTKB25AV1M
1.0 Horsepower - Outdoor	RKB25AV1M
1.0 Horsepower - Capacity Rated (Min - Max) kW	2.64 (1.03 - 2.70)
1.0 Horsepower - Capacity Rated (Min - Max) Btu/h	9,000 (3,500 - 9,200)
1.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
1.0 Horsepower - Running current Rated (Min - Max) A	3.96 (2.08 – 4.28)
1.0 Horsepower - Power consumption Rated (Min - Max) W	890 (255 - 960)
1.0 Horsepower - CSPF Wh/Wh	4.9
1.0 Horsepower - Energy rating	4 star
1.0 Horsepower - Heat insulation	Both liquid and gas piping
1.0 Horsepower - Indoor unit - Airflow rate H cfm	340
1.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	39/33/26/21
1.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	280 x 730 x 213
1.0 Horsepower - Indoor unit - Unit weight Kg	8
1.0 Horsepower - Outdoor unit - Refrigerant Type	R32
1.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	48
1.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	460 x 650 x 240
1.0 Horsepower - Outdoor unit - Unit weight kg	16.5
1.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
1.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø9.52
1.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
1.0 Horsepower - Outdoor unit - Maximum pipe length m	20
1.0 Horsepower - Outdoor unit - Maximum height difference m	15
1.0 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
1.5 Horsepower - Series	FTKB-A Series
1.5 Horsepower - Indoor	FTKB35AV1M
1.5 Horsepower - Outdoor	RKB35AV1M
1.5 Horsepower - Capacity Rated (Min - Max) kW	3.60 (1.20 - 3.75)
1.5 Horsepower - Capacity Rated (Min - Max) Btu/h	12,300 (4,100 - 12,800)
1.5 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
1.5 Horsepower - Running current Rated (Min - Max) A	5.50 (2.37 – 5.88)
1.5 Horsepower - Power consumption Rated (Min - Max) W	1160 (250 – 1,240)
1.5 Horsepower - CSPF Wh/Wh	4.9
1.5 Horsepower - Energy rating	4 star
1.5 Horsepower - Heat insulation	Both liquid and gas piping
1.5 Horsepower - Indoor unit - Airflow rate H cfm	400
1.5 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	40/35/28/23
1.5 Horsepower - Indoor unit - Dimensions H x W x D Mm	288 x 770 x 234
1.5 Horsepower - Indoor unit - Unit weight Kg	9
1.5 Horsepower - Outdoor unit - Refrigerant Type	R32
1.5 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	49
1.5 Horsepower - Outdoor unit - Dimensions H x W x D mm	550 x 675 x 284
1.5 Horsepower - Outdoor unit - Unit weight kg	21
1.5 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
1.5 Horsepower - Outdoor unit - Piping connection Gas mm	ø9.52
1.5 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
1.5 Horsepower - Outdoor unit - Maximum pipe length m	20
1.5 Horsepower - Outdoor unit - Maximum height difference m	15
1.5 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
2.0 Horsepower - Series	FTKB-A Series
2.0 Horsepower - Indoor	FTKB50AV1M
2.0 Horsepower - Outdoor	RKB50AV1M
2.0 Horsepower - Capacity Rated (Min - Max) kW	5.28 (1.64 - 5.42)
2.0 Horsepower - Capacity Rated (Min - Max) Btu/h	18,000 (5,600 - 18,500)
2.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
2.0 Horsepower - Running current Rated (Min - Max) A	7.29 (2.41 - 7.52)
2.0 Horsepower - Power consumption Rated (Min - Max) W	1,650 (420 - 1,700)
2.0 Horsepower - CSPF Wh/Wh	4.57
2.0 Horsepower - Energy rating	4 star
2.0 Horsepower - Heat insulation	Both liquid and gas piping
2.0 Horsepower - Indoor unit - Airflow rate H cfm	430
2.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	42 / 39 / 32 / 29
2.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	288 x 770 x 234
2.0 Horsepower - Indoor unit - Unit weight Kg	9.5
2.0 Horsepower - Outdoor unit - Refrigerant Type	R32
2.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	52
2.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	615 x 845 x 300
2.0 Horsepower - Outdoor unit - Unit weight kg	35
2.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
2.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø12.70
2.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
2.0 Horsepower - Outdoor unit - Maximum pipe length m	30
2.0 Horsepower - Outdoor unit - Maximum height difference m	20
2.0 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
2.5 Horsepower - Series	FTKB-A Series
2.5 Horsepower - Indoor	FTKB71AV1M
2.5 Horsepower - Outdoor	RKB71AV1M
2.5 Horsepower - Capacity Rated (Min - Max) kW	7.03 (1.93 - 7.18)
2.5 Horsepower - Capacity Rated (Min - Max) Btu/h	24,000 (6,600 - 24,500)
2.5 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
2.5 Horsepower - Running current Rated (Min - Max) A	9.49 (2.40 - 10.1)
2.5 Horsepower - Power consumption Rated (Min - Max) W	2,160 (380 - 2,300)
2.5 Horsepower - CSPF Wh/Wh	4.5
2.5 Horsepower - Energy rating	4 star
2.5 Horsepower - Heat insulation	Both liquid and gas piping
2.5 Horsepower - Indoor unit - Airflow rate H cfm	640
2.5 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	43 / 41 / 36 / 30
2.5 Horsepower - Indoor unit - Dimensions H x W x D Mm	297 x 990 x 273
2.5 Horsepower - Indoor unit - Unit weight Kg	13
2.5 Horsepower - Outdoor unit - Refrigerant Type	R32
2.5 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	52
2.5 Horsepower - Outdoor unit - Dimensions H x W x D mm	615 x 845 x 300
2.5 Horsepower - Outdoor unit - Unit weight kg	37
2.5 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
2.5 Horsepower - Outdoor unit - Piping connection Gas mm	ø12.70
2.5 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
2.5 Horsepower - Outdoor unit - Maximum pipe length m	30
2.5 Horsepower - Outdoor unit - Maximum height difference m	20
2.5 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
3.0 Horsepower - Series	FTKB-A Series
3.0 Horsepower - Indoor	FTKB75AV1M
3.0 Horsepower - Outdoor	RKB75AV1M
3.0 Horsepower - Capacity Rated (Min - Max) kW	7.50 (2.32-8.50)
3.0 Horsepower - Capacity Rated (Min - Max) Btu/h	25,600 (7,900 – 29,000)
3.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
3.0 Horsepower - Running current Rated (Min - Max) A	9.71 (2.56 – 11.4)
3.0 Horsepower - Power consumption Rated (Min - Max) W	2,180 (520 - 2,580)
3.0 Horsepower - CSPF Wh/Wh	5.6
3.0 Horsepower - Heat insulation	Both liquid and gas piping
3.0 Horsepower - Indoor unit - Airflow rate H cfm	700
3.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	44 / 41 / 36 / 30
3.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	297 x 990 x 273
3.0 Horsepower - Indoor unit - Unit weight Kg	13
3.0 Horsepower - Outdoor unit - Refrigerant Type	R32
3.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	53
3.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	695 x 930 x 350
3.0 Horsepower - Outdoor unit - Unit weight kg	40
3.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø9.52
3.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø15.90
3.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
3.0 Horsepower - Outdoor unit - Maximum pipe length m	35
3.0 Horsepower - Outdoor unit - Maximum height difference m	20
3.0 Horsepower - Outdoor unit - Heat Exchanger Type	Microchannel

Notes

Shipping weight and dimensions are estimated as a combined package value for both the indoor and outdoor units, requiring verification upon delivery.
The 3.0HP model utilizes a Microchannel heat exchanger for the outdoor unit, differing from the Blue Fin type used in smaller variants.

Warnings

Installation must be performed by certified HVAC professionals to ensure safety and warranty validity.
This unit requires a 1-phase power supply; ensure electrical infrastructure meets the rated capacity requirements (approx 9.71A nominal).

Tips & Tricks

Clean the Gin-Ion Blue Filter every 2 weeks to maintain optimal air quality and consistent system performance.
Ensure adequate clearance around the outdoor unit to prevent heat accumulation and maintain cooling efficiency.
