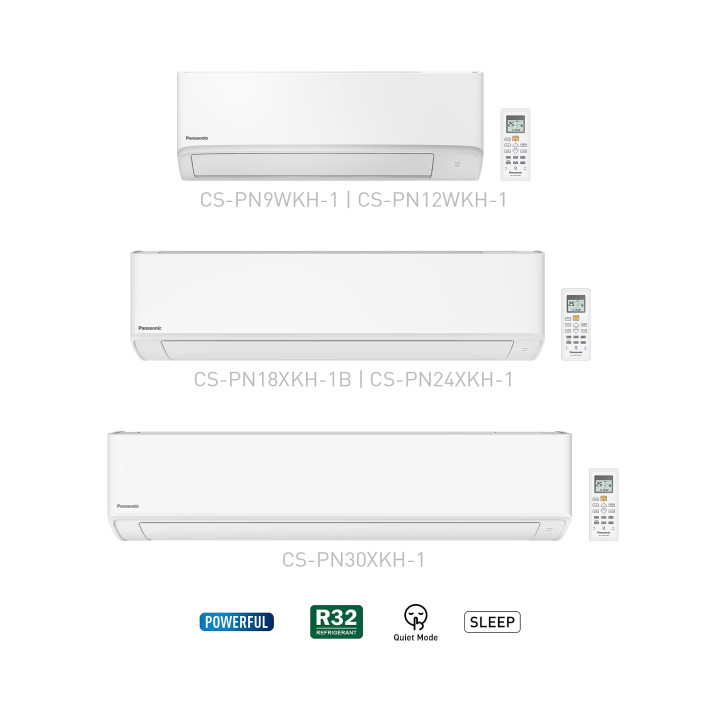

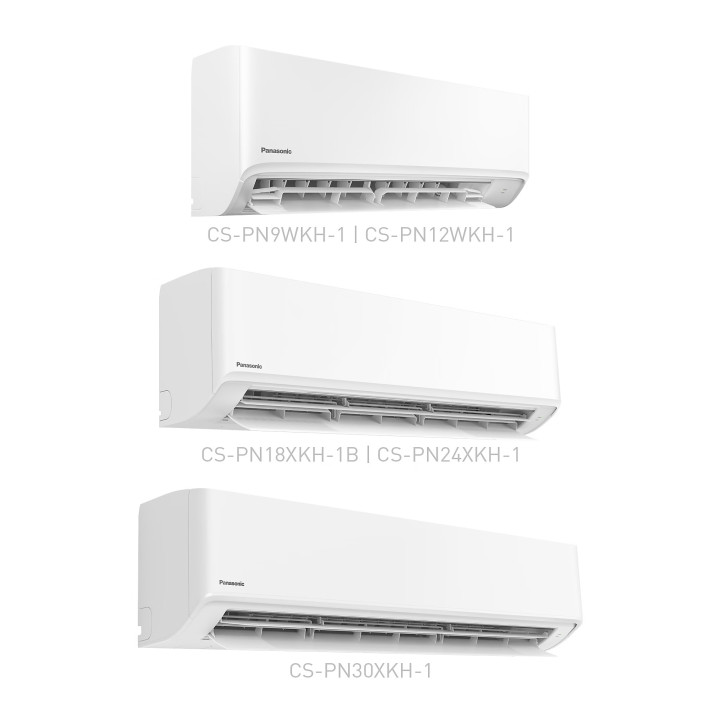

Panasonic 2.0HP Standard Non-Inverter R32 PN Series Air Conditioner CS/CU-PN18XKH-1B| Macro
Panasonic 2.0HP Standard Non-Inverter R32 PN Series Air Conditioner CS/CU-PN18XKH-1B| Macro
Panasonic 2.0HP Standard Non-Inverter R32 PN Series Air Conditioner CS/CU-PN18XKH-1B| Macro
Panasonic 2.0HP Standard Non-Inverter R32 PN Series Air Conditioner CS/CU-PN18XKH-1B| Macro
Panasonic 2.0HP Standard Non-Inverter R32 PN Series Air Conditioner CS/CU-PN18XKH-1B| Macro

Panasonic 2.0HP Standard Non-Inverter R32 PN Series Air Conditioner CS/CU-PN18XKH-1B

Panasonic
RM2,899.00 (Save RM499.00)
RM2,400.00
No tax
The Panasonic Standard Non-Inverter R32 PN Series Air Conditioner offers instant cooling comfort with its powerful features. Equipped with POWERFUL Mode for quick cooling, BIG FLAP or AEROWINGS for directed airflow, and Quiet Mode for silent operation, it creates a peaceful indoor environment. Utilizing eco-friendly R32 refrigerant, it ensures high cooling capacity and lower energy costs within a compact design.
Share

Key Features

  • POWERFUL Mode runs both the compressor and indoor fan at super high speed for instant cooling comfort upon start-up.
  • BIG FLAP directs cooling air downwards and across the room (applicable to CS-PN9WKH-1 and CS-PN12WKH-1 models).
  • AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps (applicable to CS-PN18XKH-1B, CS-PN24XKH-1, and CS-PN30XKH-1 models).
  • Quiet Mode reduces the noise level of the indoor unit to a minimum by adjusting fan speed, ideal for study or rest times.
  • Sleep Mode automatically shifts the set temperature during sleeping time to match body temperature changes for healthier sleep.
  • Environmentally friendly R32 refrigerant provides higher cooling capacity, lower energy costs, and low global warming potential.
  • Compact design allows easy installation and maintenance in tight, narrow spaces close to ceilings, corners, or above doors and windows.

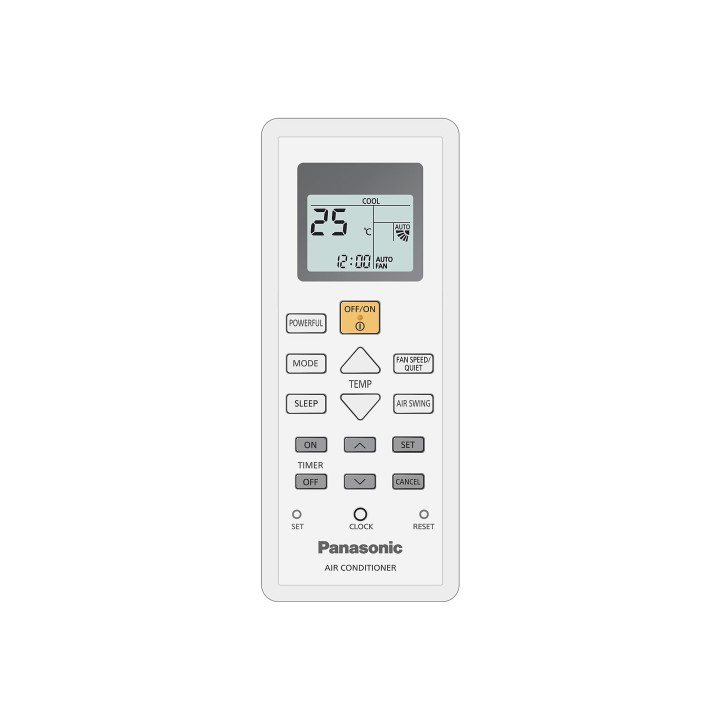

  • Convenient handheld wireless remote controller provides easy access to commonly used functions.

Specifications

SpecificationDetail
Model Name (Indoor / Outdoor)1.0 HP: CS-PN9WKH-1 / CU-PN9WKH-1
1.5 HP: CS-PN12WKH-1 / CU-PN12WKH-1
2.0 HP: CS-PN18XKH-1B / CU-PN18XKH-1B
2.5 HP: CS-PN24XKH-1 / CU-PN24XKH-1
3.0 HP: CS-PN30XKH-1 / CU-PN30XKH-1
Horsepower1.0 HP: 1.0 HP
1.5 HP: 1.5 HP
2.0 HP: 2.0 HP
2.5 HP: 2.5 HP
3.0 HP: 3.0 HP
Cooling Capacity (kW)1.0 HP: 2.78 kW
1.5 HP: 3.52 kW
2.0 HP: 5.33 kW
2.5 HP: 6.85 kW
3.0 HP: 8.80 kW
Cooling Capacity (Btu/h)1.0 HP: 9,500 Btu/h
1.5 HP: 12,000 Btu/h
2.0 HP: 18,200 Btu/h
2.5 HP: 23,400 Btu/h
3.0 HP: 30,000 Btu/h
EER (Btu/hW)1.0 HP: 11.59 Btu/hW
1.5 HP: 11.21 Btu/hW
2.0 HP: 11.23 Btu/hW
2.5 HP: 10.68 Btu/hW
3.0 HP: 12.40 Btu/hW
EER (W/W)1.0 HP: 3.39 W/W
1.5 HP: 3.29 W/W
2.0 HP: 3.29 W/W
2.5 HP: 3.13 W/W
3.0 HP: 3.64 W/W
CSPF (W/W)1.0 HP: 3.48 W/W
1.5 HP: 3.43 W/W
2.0 HP: 3.52 W/W
2.5 HP: 3.36 W/W
3.0 HP: Not Specified
Voltage (V)All Models: 230 V
Current (A)1.0 HP: 3.7 A
1.5 HP: 4.8 A
2.0 HP: 7.1 A
2.5 HP: 9.7 A
3.0 HP: 10.6 A
Power Input (W)1.0 HP: 820 W
1.5 HP: 1,070 W
2.0 HP: 1,620 W
2.5 HP: 2,190 W
3.0 HP: 2,420 W
Moisture Removal (L/h)1.0 HP: 1.6 L/h
1.5 HP: 2.0 L/h
2.0 HP: 2.9 L/h
2.5 HP: 3.9 L/h
3.0 HP: 5.0 L/h
Moisture Removal (Pt/h)1.0 HP: 3.4 Pt/h
1.5 HP: 4.2 Pt/h
2.0 HP: 6.1 Pt/h
2.5 HP: 8.2 Pt/h
3.0 HP: 10.6 Pt/h
Indoor Unit Air Circulation1.0 HP: 10.9 m³/min (385 ft³/min)
1.5 HP: 11.6 m³/min (409 ft³/min)
2.0 HP: 18.4 m³/min (650 ft³/min)
2.5 HP: 20.5 m³/min (724 ft³/min)
3.0 HP: 25.5 m³/min (900 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)1.0 HP: 38/26 dB(A)
1.5 HP: 41/29 dB(A)
2.0 HP: 43/39 dB(A)
2.5 HP: 47/42 dB(A)
3.0 HP: 51/46 dB(A)

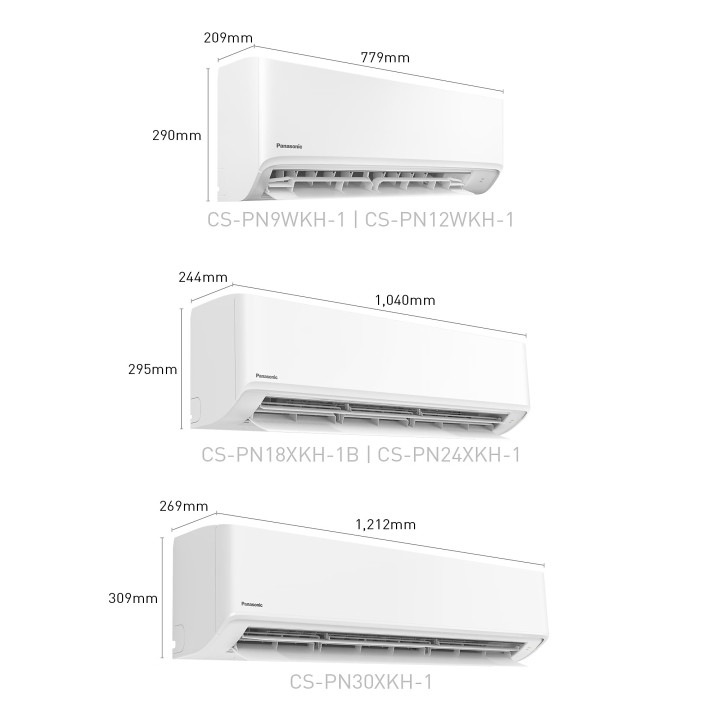

Indoor Unit Dimensions (H x W x D) (mm)1.0 HP: 290 mm x 779 mm x 209 mm
1.5 HP: 290 mm x 779 mm x 209 mm
2.0 HP: 295 mm x 1,040 mm x 244 mm
2.5 HP: 295 mm x 1,040 mm x 244 mm
3.0 HP: 309 mm x 1,212 mm x 269 mm
Indoor Unit Dimensions (H x W x D) (inch)1.0 HP: 11-7/16 inch x 30-11/16 inch x 8-1/4 inch
1.5 HP: 11-7/16 inch x 30-11/16 inch x 8-1/4 inch
2.0 HP: 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
2.5 HP: 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
3.0 HP: 12-3/16 inch x 47-23/32 inch x 10-19/32 inch
Indoor Unit Net Weight1.0 HP: 8 kg (18 lb)
1.5 HP: 8 kg (18 lb)
2.0 HP: 12 kg (26 lb)
2.5 HP: 12 kg (26 lb)
3.0 HP: 16 kg (35 lb)
Outdoor Unit Air Circulation1.0 HP: 28.8 m³/min (1,020 ft³/min)
1.5 HP: 29.8 m³/min (1,050 ft³/min)
2.0 HP: 39.3 m³/min (1,390 ft³/min)
2.5 HP: 40.3 m³/min (1,420 ft³/min)
3.0 HP: 54.4 m³/min (1,920 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo)1.0 HP: 48 dB(A)
1.5 HP: 51 dB(A)
2.0 HP: 53 dB(A)
2.5 HP: 55 dB(A)
3.0 HP: 56 dB(A)

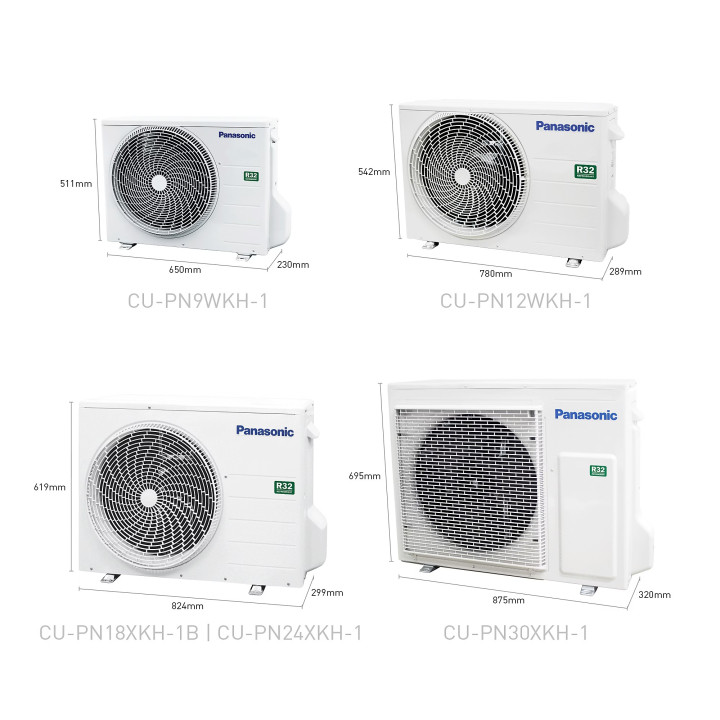

Outdoor Unit Dimensions (H x W x D) (mm)1.0 HP: 511 mm x 650 mm x 230 mm
1.5 HP: 542 mm x 780 mm x 289 mm
2.0 HP: 619 mm x 824 mm x 299 mm
2.5 HP: 619 mm x 824 mm x 299 mm
3.0 HP: 695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch)1.0 HP: 20-1/8 inch x 25-19/32 inch x 9-1/16 inch
1.5 HP: 21-11/32 inch x 30-23/32 inch x 11-13/32 inch
2.0 HP: 24-3/8 inch x 32-15/32 inch x 11-25/32 inch
2.5 HP: 24-3/8 inch x 32-15/32 inch x 11-25/32 inch
3.0 HP: 27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Net Weight1.0 HP: 21 kg (46 lb)
1.5 HP: 26 kg (57 lb)
2.0 HP: 35 kg (77 lb)
2.5 HP: 41 kg (90 lb)
3.0 HP: 53 kg (117 lb)
Refrigerant Pipe Diameter (Liquid Side)All Models: ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)1.0 HP: ø 9.52 mm (3/8 inch)
1.5 HP: ø 9.52 mm (3/8 inch)
2.0 HP: ø 12.70 mm (1/2 inch)
2.5 HP: ø 15.88 mm (5/8 inch)
3.0 HP: ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length)All Models: 7.5 m
Pipe Extension (Maximum Pipe Length)1.0 HP: 20 m
1.5 HP: 20 m
2.0 HP: 30 m
2.5 HP: 30 m
3.0 HP: 40 m
Pipe Extension (Maximum Elevation Length)1.0 HP: 15 m
1.5 HP: 15 m
2.0 HP: 20 m
2.5 HP: 20 m
3.0 HP: 30 m
Pipe Extension (Additional Refrigerant Gas)1.0 HP: 10 g/m
1.5 HP: 10 g/m
2.0 HP: 15 g/m
2.5 HP: 25 g/m
3.0 HP: 25 g/m
Power Supply1.0 HP: Indoor
1.5 HP: Indoor
2.0 HP: Indoor
2.5 HP: Indoor
3.0 HP: Outdoor
Sleep ModeAll Models: Yes
Powerful ModeAll Models: Yes
Soft Dry Operation ModeAll Models: Yes
Quiet ModeAll Models: Yes
Airflow Direction Control (Up & Down)All Models: Yes
Manual Horizontal Airflow Direction ControlAll Models: Yes
Odour Removing FunctionAll Models: Yes
Removable Washable PanelAll Models: Yes
24-Hour ON & OFF Real Setting TimerAll Models: Yes
LCD Wireless Remote ControlAll Models: Yes
Wired Remote ControlAll Models: Yes (Optional)
Random Auto RestartAll Models: Yes (32 Restart Patterns)
Blue Fin CondenserAll Models: Yes
Top Panel Maintenance AccessAll Models: Yes
