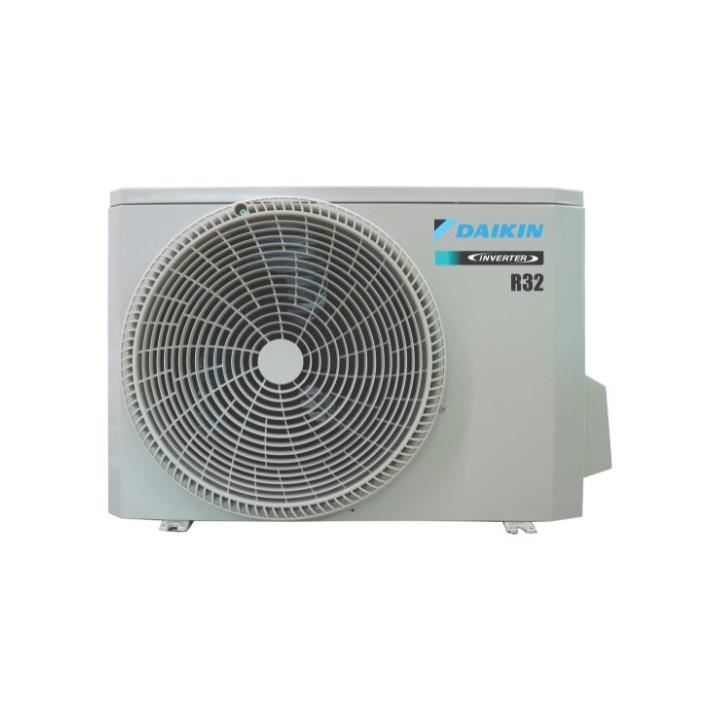

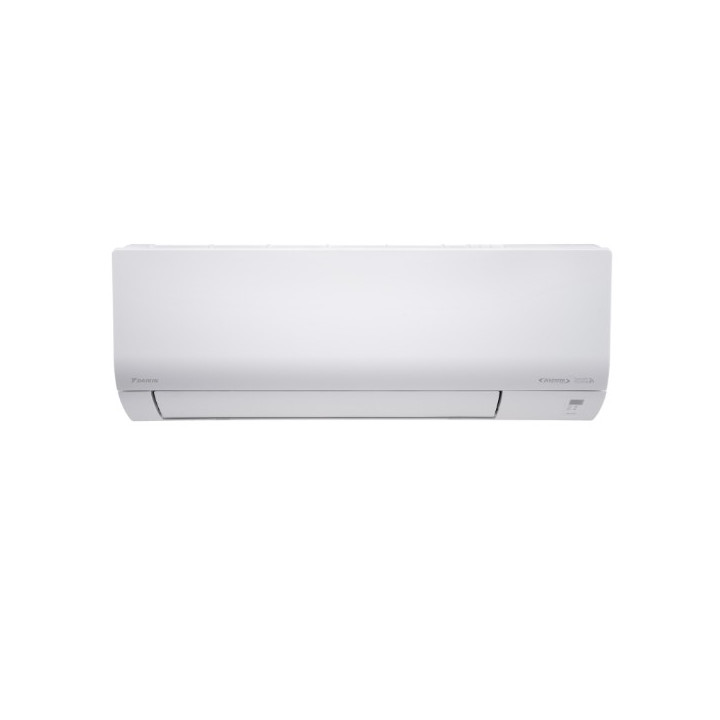

Daikin FTKB25AV1M / RKB25AV1M 1.0HP FTKB-A Series R32 Inverter Air Conditioner

Name: Daikin FTKB25AV1M / RKB25AV1M 1.0HP FTKB-A Series R32 Inverter Air Conditioner
Brand: Daikin
SKU: FTKB25A/RKB25A-3WMY-LF
Price: 1317 MYR
Availability: InStock

Daikin

RM1,599.00 (Save RM282.00)

RM1,317.00

No tax

The Daikin FTKB-A Series 1.0HP Inverter air conditioner provides efficient, reliable cooling with 4-star energy efficiency. Featuring advanced R32 refrigerant, a Gin-Ion Blue filter to decompose viruses and bacteria, and durable Blue Fin heat exchanger coils, this unit ensures a healthier indoor environment. With built-in Smart Control technology, you can manage your home climate conveniently via smartphone, while the easily removable drain pan simplifies maintenance for long-term, high-performance operation.

Product Overview

Key Features

Smart Control (Built-in) allows remote operation and monitoring via smartphone app
Gin-Ion Blue Filter decomposes up to 99.9% of captured viruses and inhibits bacterial/fungal growth
ECONO Mode for energy-efficient operation by limiting maximum power consumption
Anti-Corrosion Blue Fin treated outdoor heat exchanger for enhanced durability against environmental elements
Easily removable drain pan facilitates quick and thorough cleaning during maintenance
Energy-efficient R32 refrigerant technology with 4-star energy rating

Specifications

Specification	Detail
Product Name	FTKB Series (R32)
1.0 Horsepower - Series	FTKB-A Series
1.0 Horsepower - Indoor	FTKB25AV1M
1.0 Horsepower - Outdoor	RKB25AV1M
1.0 Horsepower - Capacity Rated (Min - Max) kW	2.64 (1.03 - 2.70)
1.0 Horsepower - Capacity Rated (Min - Max) Btu/h	9,000 (3,500 - 9,200)
1.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
1.0 Horsepower - Running current Rated (Min - Max) A	3.96 (2.08 – 4.28)
1.0 Horsepower - Power consumption Rated (Min - Max) W	890 (255 - 960)
1.0 Horsepower - CSPF Wh/Wh	4.9
1.0 Horsepower - Energy rating	4 star
1.0 Horsepower - Heat insulation	Both liquid and gas piping
1.0 Horsepower - Indoor unit - Airflow rate H cfm	340
1.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	39/33/26/21
1.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	280 x 730 x 213
1.0 Horsepower - Indoor unit - Unit weight Kg	8
1.0 Horsepower - Outdoor unit - Refrigerant Type	R32
1.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	48
1.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	460 x 650 x 240
1.0 Horsepower - Outdoor unit - Unit weight kg	16.5
1.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
1.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø9.52
1.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
1.0 Horsepower - Outdoor unit - Maximum pipe length m	20
1.0 Horsepower - Outdoor unit - Maximum height difference m	15
1.0 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
1.5 Horsepower - Series	FTKB-A Series
1.5 Horsepower - Indoor	FTKB35AV1M
1.5 Horsepower - Outdoor	RKB35AV1M
1.5 Horsepower - Capacity Rated (Min - Max) kW	3.60 (1.20 - 3.75)
1.5 Horsepower - Capacity Rated (Min - Max) Btu/h	12,300 (4,100 - 12,800)
1.5 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
1.5 Horsepower - Running current Rated (Min - Max) A	5.50 (2.37 – 5.88)
1.5 Horsepower - Power consumption Rated (Min - Max) W	1160 (250 – 1,240)
1.5 Horsepower - CSPF Wh/Wh	4.9
1.5 Horsepower - Energy rating	4 star
1.5 Horsepower - Heat insulation	Both liquid and gas piping
1.5 Horsepower - Indoor unit - Airflow rate H cfm	400
1.5 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	40/35/28/23
1.5 Horsepower - Indoor unit - Dimensions H x W x D Mm	288 x 770 x 234
1.5 Horsepower - Indoor unit - Unit weight Kg	9
1.5 Horsepower - Outdoor unit - Refrigerant Type	R32
1.5 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	49
1.5 Horsepower - Outdoor unit - Dimensions H x W x D mm	550 x 675 x 284
1.5 Horsepower - Outdoor unit - Unit weight kg	21
1.5 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
1.5 Horsepower - Outdoor unit - Piping connection Gas mm	ø9.52
1.5 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
1.5 Horsepower - Outdoor unit - Maximum pipe length m	20
1.5 Horsepower - Outdoor unit - Maximum height difference m	15
1.5 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
2.0 Horsepower - Series	FTKB-A Series
2.0 Horsepower - Indoor	FTKB50AV1M
2.0 Horsepower - Outdoor	RKB50AV1M
2.0 Horsepower - Capacity Rated (Min - Max) kW	5.28 (1.64 - 5.42)
2.0 Horsepower - Capacity Rated (Min - Max) Btu/h	18,000 (5,600 - 18,500)
2.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
2.0 Horsepower - Running current Rated (Min - Max) A	7.29 (2.41 - 7.52)
2.0 Horsepower - Power consumption Rated (Min - Max) W	1,650 (420 - 1,700)
2.0 Horsepower - CSPF Wh/Wh	4.57
2.0 Horsepower - Energy rating	4 star
2.0 Horsepower - Heat insulation	Both liquid and gas piping
2.0 Horsepower - Indoor unit - Airflow rate H cfm	430
2.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	42 / 39 / 32 / 29
2.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	288 x 770 x 234
2.0 Horsepower - Indoor unit - Unit weight Kg	9.5
2.0 Horsepower - Outdoor unit - Refrigerant Type	R32
2.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	52
2.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	615 x 845 x 300
2.0 Horsepower - Outdoor unit - Unit weight kg	35
2.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
2.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø12.70
2.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
2.0 Horsepower - Outdoor unit - Maximum pipe length m	30
2.0 Horsepower - Outdoor unit - Maximum height difference m	20
2.0 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
2.5 Horsepower - Series	FTKB-A Series
2.5 Horsepower - Indoor	FTKB71AV1M
2.5 Horsepower - Outdoor	RKB71AV1M
2.5 Horsepower - Capacity Rated (Min - Max) kW	7.03 (1.93 - 7.18)
2.5 Horsepower - Capacity Rated (Min - Max) Btu/h	24,000 (6,600 - 24,500)
2.5 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
2.5 Horsepower - Running current Rated (Min - Max) A	9.49 (2.40 - 10.1)
2.5 Horsepower - Power consumption Rated (Min - Max) W	2,160 (380 - 2,300)
2.5 Horsepower - CSPF Wh/Wh	4.5
2.5 Horsepower - Energy rating	4 star
2.5 Horsepower - Heat insulation	Both liquid and gas piping
2.5 Horsepower - Indoor unit - Airflow rate H cfm	640
2.5 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	43 / 41 / 36 / 30
2.5 Horsepower - Indoor unit - Dimensions H x W x D Mm	297 x 990 x 273
2.5 Horsepower - Indoor unit - Unit weight Kg	13
2.5 Horsepower - Outdoor unit - Refrigerant Type	R32
2.5 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	52
2.5 Horsepower - Outdoor unit - Dimensions H x W x D mm	615 x 845 x 300
2.5 Horsepower - Outdoor unit - Unit weight kg	37
2.5 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
2.5 Horsepower - Outdoor unit - Piping connection Gas mm	ø12.70
2.5 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
2.5 Horsepower - Outdoor unit - Maximum pipe length m	30
2.5 Horsepower - Outdoor unit - Maximum height difference m	20
2.5 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
3.0 Horsepower - Series	FTKB-A Series
3.0 Horsepower - Indoor	FTKB75AV1M
3.0 Horsepower - Outdoor	RKB75AV1M
3.0 Horsepower - Capacity Rated (Min - Max) kW	7.50 (2.32-8.50)
3.0 Horsepower - Capacity Rated (Min - Max) Btu/h	25,600 (7,900 – 29,000)
3.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
3.0 Horsepower - Running current Rated (Min - Max) A	9.71 (2.56 – 11.4)
3.0 Horsepower - Power consumption Rated (Min - Max) W	2,180 (520 - 2,580)
3.0 Horsepower - CSPF Wh/Wh	5.6
3.0 Horsepower - Heat insulation	Both liquid and gas piping
3.0 Horsepower - Indoor unit - Airflow rate H cfm	700
3.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	44 / 41 / 36 / 30
3.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	297 x 990 x 273
3.0 Horsepower - Indoor unit - Unit weight Kg	13
3.0 Horsepower - Outdoor unit - Refrigerant Type	R32
3.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	53
3.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	695 x 930 x 350
3.0 Horsepower - Outdoor unit - Unit weight kg	40
3.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø9.52
3.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø15.90
3.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
3.0 Horsepower - Outdoor unit - Maximum pipe length m	35
3.0 Horsepower - Outdoor unit - Maximum height difference m	20
3.0 Horsepower - Outdoor unit - Heat Exchanger Type	Microchannel

Notes

Shipping weight and dimensions are estimated by combining individual unit weights (8kg + 16.5kg) plus 20% protective packaging allowance to determine courier-standard chargeable volume.
Smart Control requires initial pairing via the Go Daikin app to the built-in network adaptor.
Heat insulation provided for both liquid and gas piping.

Warnings

Electrical installation must be performed by a qualified technician; ensure the power supply is 1 phase, 220-240 V, 50 Hz.
Ensure adequate space for outdoor unit ventilation to prevent performance degradation.
Refrigerant R32 requires specific handling; ensure professional installation according to safety guidelines.

Tips & Tricks

Clean the Gin-Ion Blue filter every 2 weeks to ensure consistent air quality and optimal performance.
Utilize the Econo Mode to reduce power consumption when high cooling capacity is not required.
