Panasonic 1.0HP Eco Inverter YU Series (AKH-1) CS/CU-YU9AKH Single Split Wall Mount Air

Panasonic 1.0HP Eco Inverter YU Series (AKH-1) CS/CU-YU9AKH Single Split Wall Mount Air Conditioner

Name: Panasonic 1.0HP Eco Inverter YU Series (AKH-1) CS/CU-YU9AKH Single Split Wall Mount Air Conditioner
Brand: Panasonic
SKU: CS/CU-YU9AKH
Price: 1223 MYR
Availability: InStock

Panasonic

RM1,499.00 (Save RM276.00)

RM1,223.00

No tax

The Panasonic Eco Inverter YU Series (AKH-1) air conditioner combines advanced Inverter technology and AI-controlled ECO Mode to deliver exceptional energy savings without compromising on comfort. Featuring a Powerful Mode for instant cooling, Quiet Mode for serene environments, and compatibility with the Panasonic Comfort Cloud App, it provides intelligent, convenient, and eco-friendly temperature management tailored to your lifestyle.

Comfort Cloud App Integration: Seamlessly manage and control multiple air conditioning units from anywhere with the Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1).
Energy-Saving Inverter Technology: Utilizes a high-precision micro-computer to regulate variable compressor speeds, delivering precise temperature control and reduced power consumption.
ECO Mode with A.I. Control: Intelligently senses and balances the optimal ECO level dynamically throughout the day to maximize energy efficiency while keeping you comfortable.
Powerful Mode: Delivers rapid cooling on demand by running the compressor and indoor fan at super high speed to lower the room temperature instantly upon startup.
Quiet Mode: Reduces indoor unit noise levels to a whisper-quiet minimum, making it perfect for studying, resting, or sleeping.
Optimized Airflow Design: Features a Big Flap for directed wide airflow (applicable to CS-YU9AKH-1, CS-YU12AKH-1, and CS-YU18AKH-1) or AEROWINGS dual flaps for concentrated, faster airflow (applicable to CS-YU24AKH-1 and CS-YU30AKH-1).
Sleep Mode: Enhances sleep quality by automatically adjusting the ambient temperature to match your body's natural temperature drop during the night.
Eco-Friendly R32 Refrigerant: Utilizes high-efficiency R32 refrigerant, which is more environmentally friendly and has a lower global warming potential.

Specifications

Specification	Detail
Series	Eco Inverter YU Series (AKH-1)
Model Numbers (Indoor / Outdoor)	1.0 HP: CS-YU9AKH-1 / CU-YU9AKH-1 1.5 HP: CS-YU12AKH-1 / CU-YU12AKH-1 2.0 HP: CS-YU18AKH-1 / CU-YU18AKH-1 2.5 HP: CS-YU24AKH-1 / CU-YU24AKH-1 3.0 HP: CS-YU30AKH-1 / CU-YU30AKH-1
Horsepower Options	1.0 HP, 1.5 HP, 2.0 HP, 2.5 HP, 3.0 HP
Cooling Capacity (kW)	1.0 HP: 2.65 kW 1.5 HP: 3.52 kW 2.0 HP: 5.30 kW 2.5 HP: 6.80 kW 3.0 HP: 8.80 kW
Cooling Capacity Min-Max (kW)	1.0 HP: 1.00-2.78 kW 1.5 HP: 1.15-3.62 kW 2.0 HP: 1.30-5.60 kW 2.5 HP: 1.50-7.04 kW 3.0 HP: 1.70-9.10 kW
Cooling Capacity (Btu/h)	1.0 HP: 9,040 Btu/h 1.5 HP: 12,000 Btu/h 2.0 HP: 18,100 Btu/h 2.5 HP: 23,200 Btu/h 3.0 HP: 30,000 Btu/h
Cooling Capacity Min-Max (Btu/h)	1.0 HP: 3,410-9,480 Btu/h 1.5 HP: 3,920-12,300 Btu/h 2.0 HP: 4,430-19,100 Btu/h 2.5 HP: 5,120-24,000 Btu/h 3.0 HP: 5,800-31,000 Btu/h
EER Min-Max (Btu/hW)	1.0 HP: 11.30 (14.21-10.53) Btu/hW 1.5 HP: 10.00 (13.52-9.76) Btu/hW 2.0 HP: 10.90 (13.84-10.16) Btu/hW 2.5 HP: 11.90 (14.63-11.43) Btu/hW 3.0 HP: 10.34 (14.50-9.69) Btu/hW
EER Min-Max (W/W)	1.0 HP: 3.31 (4.17-3.09) W/W 1.5 HP: 2.93 (3.97-2.87) W/W 2.0 HP: 3.19 (4.06-2.98) W/W 2.5 HP: 3.49 (4.29-3.35) W/W 3.0 HP: 3.03 (4.25-2.84) W/W
CSPF (W/W)	1.0 HP: 4.38 W/W (3 Star) 1.5 HP: 3.98 W/W (3 Star) 2.0 HP: 4.84 W/W (4 Star) 2.5 HP: 4.92 W/W (4 Star) 3.0 HP: Not Specified
Voltage (V)	230 V (All models)
Current (A)	1.0 HP: 3.80 A 1.5 HP: 5.70 A 2.0 HP: 7.30 A 2.5 HP: 8.60 A 3.0 HP: 12.70 A
Power Input Min-Max (W)	1.0 HP: 800 (240-900) W 1.5 HP: 1,200 (290-1,260) W 2.0 HP: 1,660 (320-1,880) W 2.5 HP: 1,950 (350-2,100) W 3.0 HP: 2,900 (400-3,200) W
Moisture Removal	1.0 HP: 1.6 L/h (3.4 Pt/h) 1.5 HP: 2.0 L/h (4.2 Pt/h) 2.0 HP: 2.9 L/h (6.1 Pt/h) 2.5 HP: 3.9 L/h (8.2 Pt/h) 3.0 HP: 5.0 L/h (10.6 Pt/h)
Indoor Unit Air Circulation	1.0 HP: 10.3 m³/min (365 ft³/min) 1.5 HP: 11.0 m³/min (390 ft³/min) 2.0 HP: 12.6 m³/min (445 ft³/min) 2.5 HP: 19.9 m³/min (700 ft³/min) 3.0 HP: 25.5 m³/min (900 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	1.0 HP: 38/26/21 dB(A) 1.5 HP: 40/28/21 dB(A) 2.0 HP: 44/34/28 dB(A) 2.5 HP: 45/34/28 dB(A) 3.0 HP: 51/41/38 dB(A)

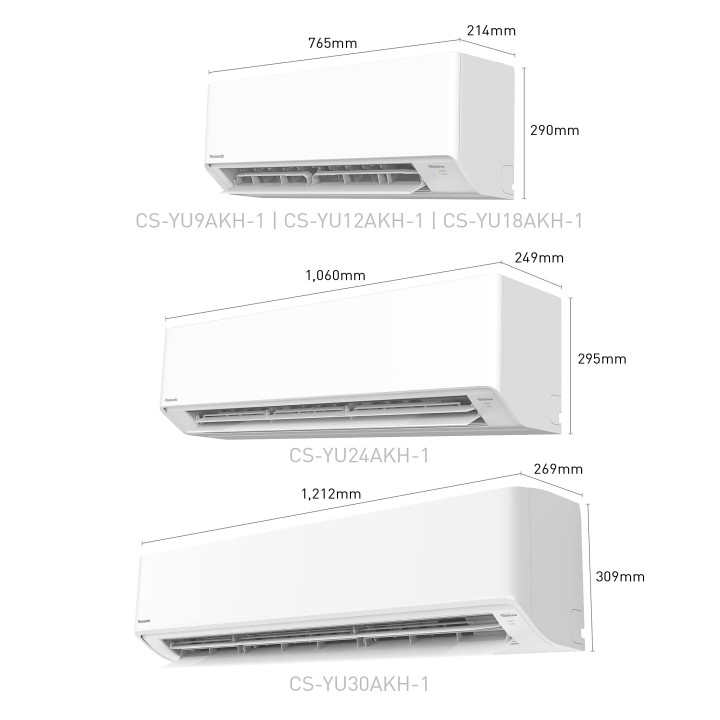

Indoor Unit Dimensions (H x W x D) (mm)	1.0 HP, 1.5 HP, 2.0 HP: 290 mm x 765 mm x 214 mm 2.5 HP: 295 mm x 1,060 mm x 249 mm 3.0 HP: 309 mm x 1,212 mm x 269 mm
Indoor Unit Dimensions (H x W x D) (inch)	1.0 HP, 1.5 HP, 2.0 HP: 11-7/16 x 30-1/8 x 8-7/16 inch 2.5 HP: 11-5/8 x 41-3/4 x 9-13/16 inch 3.0 HP: 12-3/16 x 47-23/32 x 10-19/32 inch
Indoor Unit Net Weight	1.0 HP: 8 kg (18 lb) 1.5 HP: 8 kg (18 lb) 2.0 HP: 9 kg (20 lb) 2.5 HP: 12 kg (26 lb) 3.0 HP: 15 kg (33 lb)
Indoor Unit Gross Weight	1.0 HP: 9 kg (20 lb) 1.5 HP: 9 kg (20 lb) 2.0 HP: 10 kg (22 lb) 2.5 HP: 15 kg (33 lb) 3.0 HP: Not Specified
Outdoor Unit Air Circulation	1.0 HP: 26.7 m³/min (940 ft³/min) 1.5 HP: 24.3 m³/min (860 ft³/min) 2.0 HP: 39.3 m³/min (1,390 ft³/min) 2.5 HP: 34.9 m³/min (1,230 ft³/min) 3.0 HP: 51.4 m³/min (1,810 ft³/min)
Outdoor Unit Noise Level (H)	1.0 HP: 48 dB(A) 1.5 HP: 51 dB(A) 2.0 HP: 52 dB(A) 2.5 HP: 53 dB(A) 3.0 HP: 54 dB(A)

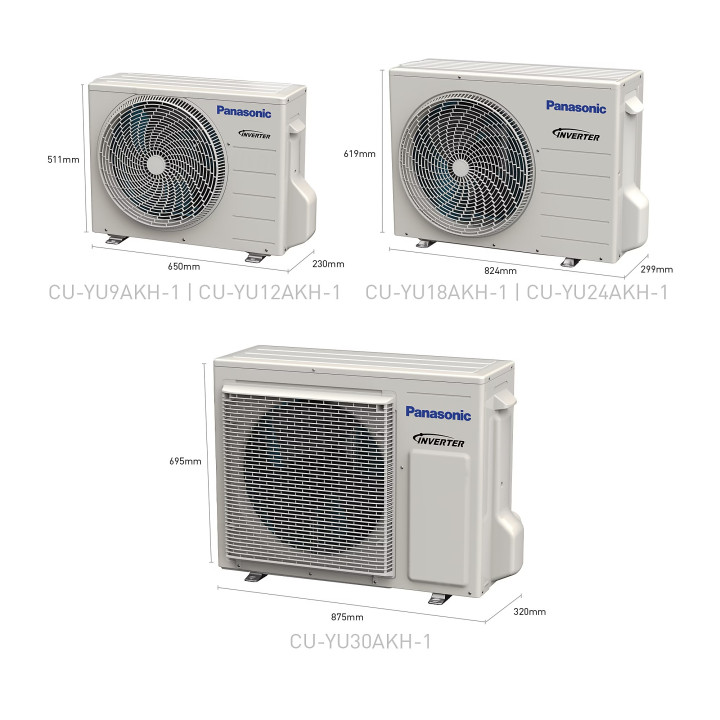

Outdoor Unit Dimensions (H x W x D) (mm)	1.0 HP, 1.5 HP: 511 mm x 650 mm x 230 mm 2.0 HP, 2.5 HP: 619 mm x 824 mm x 299 mm 3.0 HP: 695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch)	1.0 HP, 1.5 HP: 20-1/8 x 25-19/32 x 9-1/16 inch 2.0 HP, 2.5 HP: 24-3/8 x 32-15/32 x 11-25/32 inch 3.0 HP: 27-3/8 x 34-15/32 x 12-5/8 inch
Outdoor Unit Net Weight	1.0 HP: 17 kg (37 lb) 1.5 HP: 19 kg (42 lb) 2.0 HP: 27 kg (60 lb) 2.5 HP: 30 kg (66 lb) 3.0 HP: 40 kg (88 lb)
Outdoor Unit Gross Weight	1.0 HP: 19 kg (42 lb) 1.5 HP: 21 kg (46 lb) 2.0 HP: 30 kg (66 lb) 2.5 HP: 33 kg (73 lb) 3.0 HP: Not Specified
Refrigerant Type	R32 (All models)
Refrigerant Amount	1.0 HP: 420 g 1.5 HP: 610 g 2.0 HP: 690 g 2.5 HP: 870 g 3.0 HP: 1,230 g
Refrigerant Pipe Diameter (Liquid / Gas Side)	1.0 HP, 1.5 HP: ø 6.35 mm (1/4") / ø 9.52 mm (3/8") 2.0 HP, 2.5 HP: ø 6.35 mm (1/4") / ø 12.70 mm (1/2") 3.0 HP: ø 6.35 mm (1/4") / ø 15.88 mm (5/8")
Pipe Extension (Chargeless Length)	1.0 HP, 1.5 HP: 7.5 m 2.0 HP, 2.5 HP, 3.0 HP: 10 m
Pipe Extension (Max Length)	1.0 HP, 1.5 HP: 20 m 2.0 HP, 2.5 HP, 3.0 HP: 30 m
Pipe Extension (Max Elevation)	1.0 HP, 1.5 HP: 15 m 2.0 HP, 2.5 HP, 3.0 HP: 20 m
Additional Refrigerant Gas Rate	1.0 HP, 1.5 HP: 10 g/m 2.0 HP, 2.5 HP: 15 g/m 3.0 HP: 25 g/m
Power Supply Connection Point	1.0 HP, 1.5 HP, 2.0 HP, 2.5 HP: Indoor unit 3.0 HP: Outdoor unit
Odour Removing Function	Yes (All models)
Removable, Washable Panel	Yes (All models)
Wi-Fi Control Capability	Optional (Network adaptor CZ-TACG1 required) (All models)
Timer Settings	24-Hour Dual ON & OFF Real Setting Timer (All models)

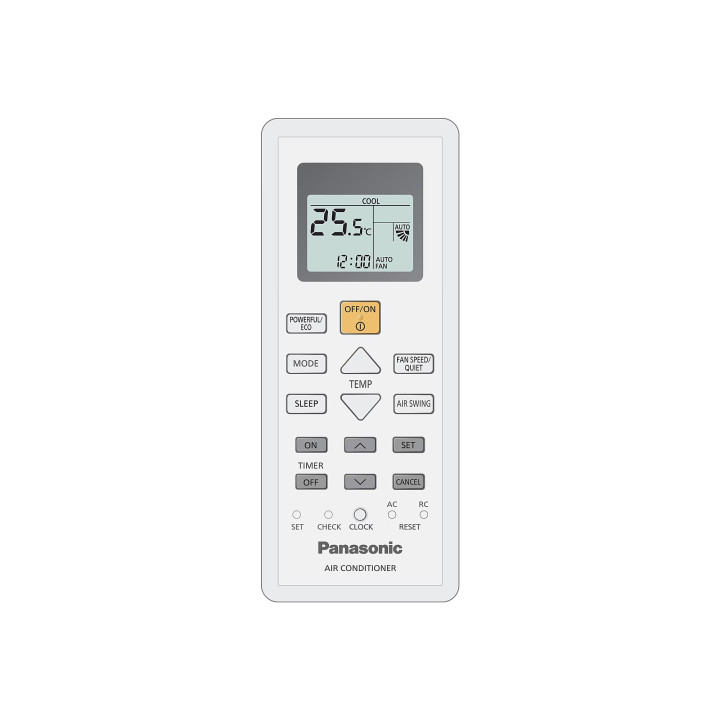

Remote Control Options	LCD Wireless Remote Control (Included) / Wired Remote Control (Optional)
Operating Modes	Powerful Mode, Quiet Mode, Sleep Mode, Soft Dry Operation Mode
Airflow Directional Control	Airflow Direction Control Up & Down (Yes) / Manual Horizontal Airflow Control (Yes)
Compressor Control	Inverter Control (All models)
Artificial Intelligence (A.I.) Control	ECO Mode with A.I. (All models)
Auto Restart Function	Random Auto Restart with 32 Restart Patterns (All models)
Condenser Design	Blue Fin Condenser (All models)
Maintenance Access	Top Panel Maintenance Access (All models)
Diagnostics	Self-Diagnostic Function (All models)
