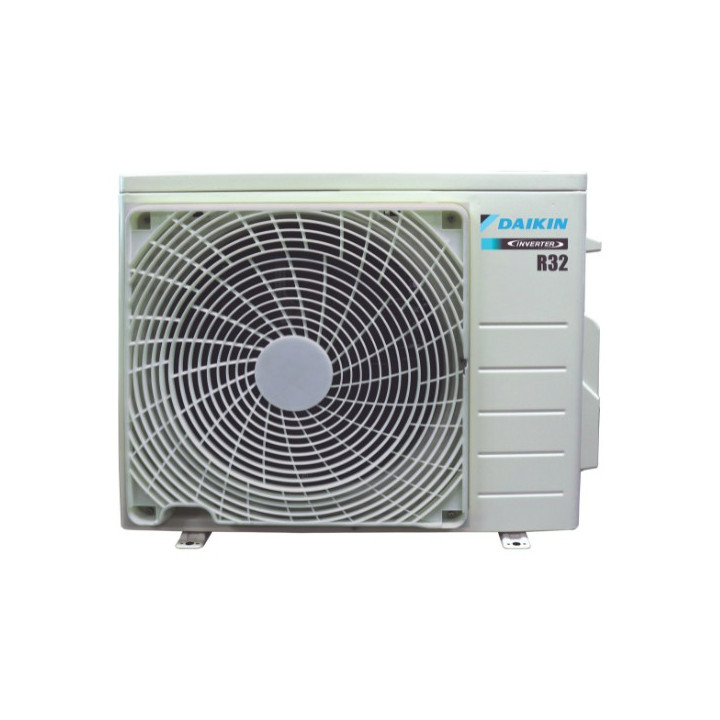

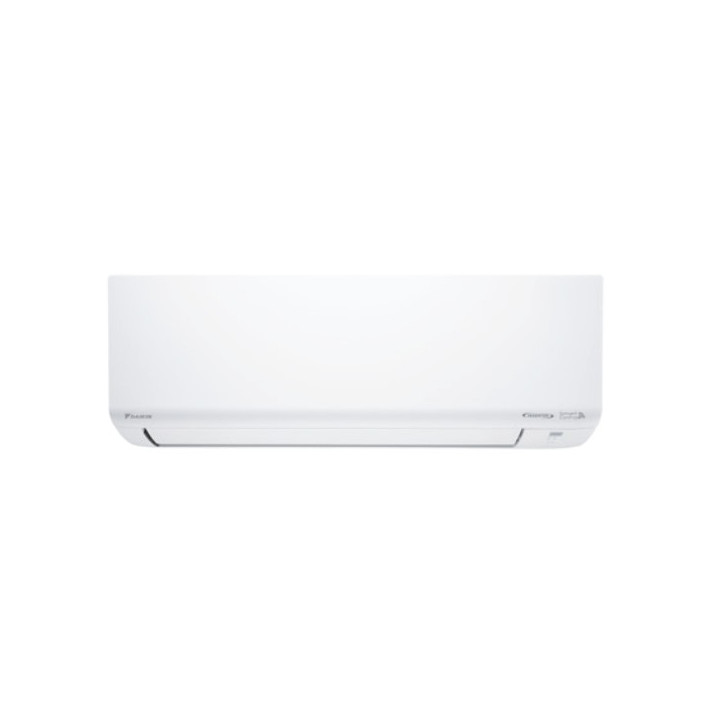

Daikin FTKB71AV1M/RKB71AV1M 2.5HP Inverter Air Conditioner (R32)

Name: Daikin FTKB71AV1M/RKB71AV1M 2.5HP Inverter Air Conditioner (R32)
Brand: Daikin
SKU: FTKB71A/RKB71A-3WMY-LF
Price: 3039 MYR
Availability: InStock

Daikin

RM3,499.00 (Save RM460.00)

RM3,039.00

No tax

The Daikin FTKB-A Series is a high-performance inverter single-split air conditioner designed for efficient and reliable cooling. Featuring 4-star energy savings, it incorporates advanced health technologies such as the Gin-Ion Blue Filter to deactivate viruses and bacteria. The system ensures durability with its anti-corrosion Blue Fin heat exchanger and offers modern convenience through built-in Smart Control, allowing users to manage their indoor climate remotely via a smartphone app.

Product Overview

Key Features

Energy-efficient inverter technology with 4-star energy rating.
Gin-Ion Blue Filter to decompose viruses, bacteria, and inhibit fungal growth.
Anti-Corrosion Treatment of Outdoor Heat Exchanger Fins (Blue Fin).
Removable drain pan design for easy and efficient maintenance.
Built-in Smart Control (AWM61A01) for remote operation via smartphone app.
ECONO Mode to limit maximum power consumption for efficiency.
R32 refrigerant for improved environmental performance.

Specifications

Specification	Detail
Product Name	FTKB Series (R32)
1.0 Horsepower - Series	FTKB-A Series
1.0 Horsepower - Indoor	FTKB25AV1M
1.0 Horsepower - Outdoor	RKB25AV1M
1.0 Horsepower - Capacity Rated (Min - Max) kW	2.64 (1.03 - 2.70)
1.0 Horsepower - Capacity Rated (Min - Max) Btu/h	9,000 (3,500 - 9,200)
1.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
1.0 Horsepower - Running current Rated (Min - Max) A	3.96 (2.08 – 4.28)
1.0 Horsepower - Power consumption Rated (Min - Max) W	890 (255 - 960)
1.0 Horsepower - CSPF Wh/Wh	4.9
1.0 Horsepower - Energy rating	4 star
1.0 Horsepower - Heat insulation	Both liquid and gas piping
1.0 Horsepower - Indoor unit - Airflow rate H cfm	340
1.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	39/33/26/21
1.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	280 x 730 x 213
1.0 Horsepower - Indoor unit - Unit weight Kg	8
1.0 Horsepower - Outdoor unit - Refrigerant Type	R32
1.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	48
1.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	460 x 650 x 240
1.0 Horsepower - Outdoor unit - Unit weight kg	16.5
1.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
1.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø9.52
1.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
1.0 Horsepower - Outdoor unit - Maximum pipe length m	20
1.0 Horsepower - Outdoor unit - Maximum height difference m	15
1.0 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
1.5 Horsepower - Series	FTKB-A Series
1.5 Horsepower - Indoor	FTKB35AV1M
1.5 Horsepower - Outdoor	RKB35AV1M
1.5 Horsepower - Capacity Rated (Min - Max) kW	3.60 (1.20 - 3.75)
1.5 Horsepower - Capacity Rated (Min - Max) Btu/h	12,300 (4,100 - 12,800)
1.5 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
1.5 Horsepower - Running current Rated (Min - Max) A	5.50 (2.37 – 5.88)
1.5 Horsepower - Power consumption Rated (Min - Max) W	1160 (250 – 1,240)
1.5 Horsepower - CSPF Wh/Wh	4.9
1.5 Horsepower - Energy rating	4 star
1.5 Horsepower - Heat insulation	Both liquid and gas piping
1.5 Horsepower - Indoor unit - Airflow rate H cfm	400
1.5 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	40/35/28/23
1.5 Horsepower - Indoor unit - Dimensions H x W x D Mm	288 x 770 x 234
1.5 Horsepower - Indoor unit - Unit weight Kg	9
1.5 Horsepower - Outdoor unit - Refrigerant Type	R32
1.5 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	49
1.5 Horsepower - Outdoor unit - Dimensions H x W x D mm	550 x 675 x 284
1.5 Horsepower - Outdoor unit - Unit weight kg	21
1.5 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
1.5 Horsepower - Outdoor unit - Piping connection Gas mm	ø9.52
1.5 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
1.5 Horsepower - Outdoor unit - Maximum pipe length m	20
1.5 Horsepower - Outdoor unit - Maximum height difference m	15
1.5 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
2.0 Horsepower - Series	FTKB-A Series
2.0 Horsepower - Indoor	FTKB50AV1M
2.0 Horsepower - Outdoor	RKB50AV1M
2.0 Horsepower - Capacity Rated (Min - Max) kW	5.28 (1.64 - 5.42)
2.0 Horsepower - Capacity Rated (Min - Max) Btu/h	18,000 (5,600 - 18,500)
2.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
2.0 Horsepower - Running current Rated (Min - Max) A	7.29 (2.41 - 7.52)
2.0 Horsepower - Power consumption Rated (Min - Max) W	1,650 (420 - 1,700)
2.0 Horsepower - CSPF Wh/Wh	4.57
2.0 Horsepower - Energy rating	4 star
2.0 Horsepower - Heat insulation	Both liquid and gas piping
2.0 Horsepower - Indoor unit - Airflow rate H cfm	430
2.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	42 / 39 / 32 / 29
2.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	288 x 770 x 234
2.0 Horsepower - Indoor unit - Unit weight Kg	9.5
2.0 Horsepower - Outdoor unit - Refrigerant Type	R32
2.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	52
2.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	615 x 845 x 300
2.0 Horsepower - Outdoor unit - Unit weight kg	35
2.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
2.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø12.70
2.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
2.0 Horsepower - Outdoor unit - Maximum pipe length m	30
2.0 Horsepower - Outdoor unit - Maximum height difference m	20
2.0 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
2.5 Horsepower - Series	FTKB-A Series
2.5 Horsepower - Indoor	FTKB71AV1M
2.5 Horsepower - Outdoor	RKB71AV1M
2.5 Horsepower - Capacity Rated (Min - Max) kW	7.03 (1.93 - 7.18)
2.5 Horsepower - Capacity Rated (Min - Max) Btu/h	24,000 (6,600 - 24,500)
2.5 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
2.5 Horsepower - Running current Rated (Min - Max) A	9.49 (2.40 - 10.1)
2.5 Horsepower - Power consumption Rated (Min - Max) W	2,160 (380 - 2,300)
2.5 Horsepower - CSPF Wh/Wh	4.5
2.5 Horsepower - Energy rating	4 star
2.5 Horsepower - Heat insulation	Both liquid and gas piping
2.5 Horsepower - Indoor unit - Airflow rate H cfm	640
2.5 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	43 / 41 / 36 / 30
2.5 Horsepower - Indoor unit - Dimensions H x W x D Mm	297 x 990 x 273
2.5 Horsepower - Indoor unit - Unit weight Kg	13
2.5 Horsepower - Outdoor unit - Refrigerant Type	R32
2.5 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	52
2.5 Horsepower - Outdoor unit - Dimensions H x W x D mm	615 x 845 x 300
2.5 Horsepower - Outdoor unit - Unit weight kg	37
2.5 Horsepower - Outdoor unit - Piping connection Liquid mm	ø6.35
2.5 Horsepower - Outdoor unit - Piping connection Gas mm	ø12.70
2.5 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
2.5 Horsepower - Outdoor unit - Maximum pipe length m	30
2.5 Horsepower - Outdoor unit - Maximum height difference m	20
2.5 Horsepower - Outdoor unit - Heat Exchanger Type	Hydrophilic Blue Fin
3.0 Horsepower - Series	FTKB-A Series
3.0 Horsepower - Indoor	FTKB75AV1M
3.0 Horsepower - Outdoor	RKB75AV1M
3.0 Horsepower - Capacity Rated (Min - Max) kW	7.50 (2.32-8.50)
3.0 Horsepower - Capacity Rated (Min - Max) Btu/h	25,600 (7,900 – 29,000)
3.0 Horsepower - Power supply	1 phase, 220-240 V, 50 Hz (Power to indoor)
3.0 Horsepower - Running current Rated (Min - Max) A	9.71 (2.56 – 11.4)
3.0 Horsepower - Power consumption Rated (Min - Max) W	2,180 (520 - 2,580)
3.0 Horsepower - CSPF Wh/Wh	5.6
3.0 Horsepower - Heat insulation	Both liquid and gas piping
3.0 Horsepower - Indoor unit - Airflow rate H cfm	700
3.0 Horsepower - Indoor unit - Sound pressure levels H / M / L / Q dB(A)	44 / 41 / 36 / 30
3.0 Horsepower - Indoor unit - Dimensions H x W x D Mm	297 x 990 x 273
3.0 Horsepower - Indoor unit - Unit weight Kg	13
3.0 Horsepower - Outdoor unit - Refrigerant Type	R32
3.0 Horsepower - Outdoor unit - Sound pressure levels H dB(A)	53
3.0 Horsepower - Outdoor unit - Dimensions H x W x D mm	695 x 930 x 350
3.0 Horsepower - Outdoor unit - Unit weight kg	40
3.0 Horsepower - Outdoor unit - Piping connection Liquid mm	ø9.52
3.0 Horsepower - Outdoor unit - Piping connection Gas mm	ø15.90
3.0 Horsepower - Outdoor unit - Chargeless pipe length m	7.5
3.0 Horsepower - Outdoor unit - Maximum pipe length m	35
3.0 Horsepower - Outdoor unit - Maximum height difference m	20
3.0 Horsepower - Outdoor unit - Heat Exchanger Type	Microchannel

Notes

Shipping weight and dimensions are estimated based on the combined weight of the indoor and outdoor units plus protective packaging for a total of two parcels.
The Smart Control feature requires an initial setup with the included network adaptor (AWM61A01).

Warnings

Installation must be performed by a certified technician to maintain warranty validity and ensure safety, particularly regarding R32 refrigerant handling.
Ensure proper clearance around the outdoor unit to prevent overheating and ensure efficient airflow.

Tips & Tricks

Clean the Gin-Ion Blue Filter every 2 weeks to maintain optimal air quality and consistent performance.
Utilize ECONO mode when low-load cooling is sufficient to maximize energy savings.
