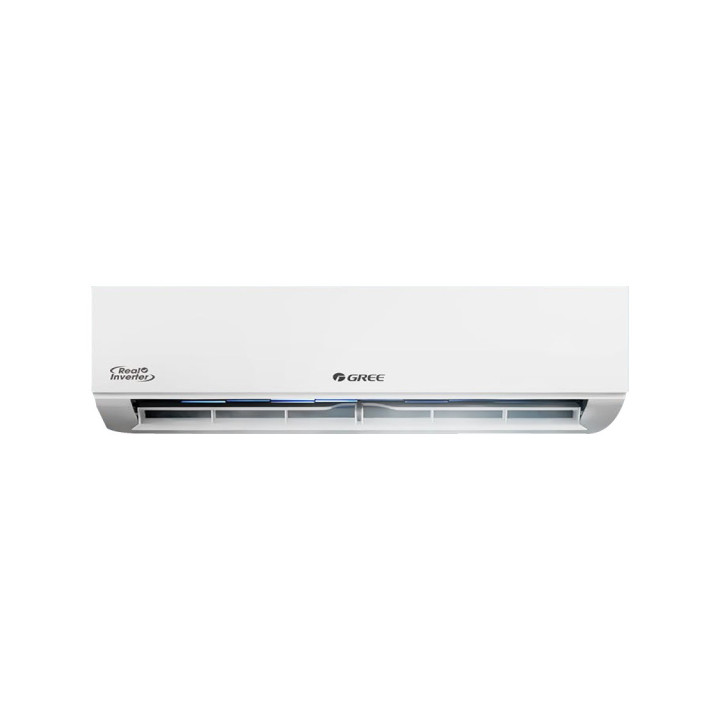

Product Overview
The Gree Nova 2.5HP Non-Inverter Air Conditioner is designed for reliable, high-capacity cooling in demanding environments. Featuring the advanced Graphene Structure Black Diamond Fin technology on both indoor and outdoor units, it provides superior corrosion resistance and durability. Equipped with an R32 eco-friendly refrigerant, G-Clean self-cleaning system, and quiet operation capabilities, this unit ensures a comfortable indoor climate while maintaining energy efficiency and longevity, backed by a robust 4-year general and 5-year compressor warranty.
Key Features
- Black Diamond Fin technology with Graphene structure for 6X enhanced corrosion resistance
- G-Clean self-cleaning system with three-stage condensation, freeze, and drying process
- R32 eco-friendly refrigerant for sustainable and efficient cooling
- Multiple fan speed options to customize airflow to various needs
- Quiet operation mode for undisturbed comfort
- I Feel function for intelligent auto temperature control via ambient sensing
Specifications
| Specification | Detail |
|---|
| Horsepower | 2.5HP |
| Cooling Capacity | 6.55 kW / 22,350 Btu/h |
| Indoor Model | GWC24AWDXF-K6NNA1A/I |
| Outdoor Model | GWC24AWDXF-K6NNA1A/O |
| Rated Power Input | 2,100 W |
| Rated Current | 9.5 A |
| Air Flow (H/M/L) | 1000/800/670 m³/h |
| Indoor Noise Level (H/M/L) | 46/43/38 dB(A) |
| Indoor Dimension (WxDxH) | 978 x 248 x 333 mm |
| Outdoor Dimension (WxDxH) | 958 x 402 x 660 mm |
| Net/Gross Weight (Indoor) | 14.0/16.5 kg |
| Net/Gross Weight (Outdoor) | 46.5/51.0 kg |
| Refrigerant | R32 |
| Pipe Diameter (Liquid/Gas) | 1/4" / 1/2" |
| Max Pipe Length | 25 m |
Notes
- Shipping weight and dimensions represent the combined estimated total of both indoor and outdoor units in their original packaging.
- Warranty terms provided: 4 years general warranty and 5 years compressor warranty.
Warnings
- Installation should be performed by a certified technician to ensure safety and warranty compliance.
- Ensure proper electrical capacity is available for the 2.5HP rating to prevent circuit overload.
Tips & Tricks
- Utilize the G-Clean system regularly to maintain airflow efficiency and improve indoor air quality.
- Keep clear space around the outdoor unit to ensure adequate ventilation and prevent overheating.
