Product Overview

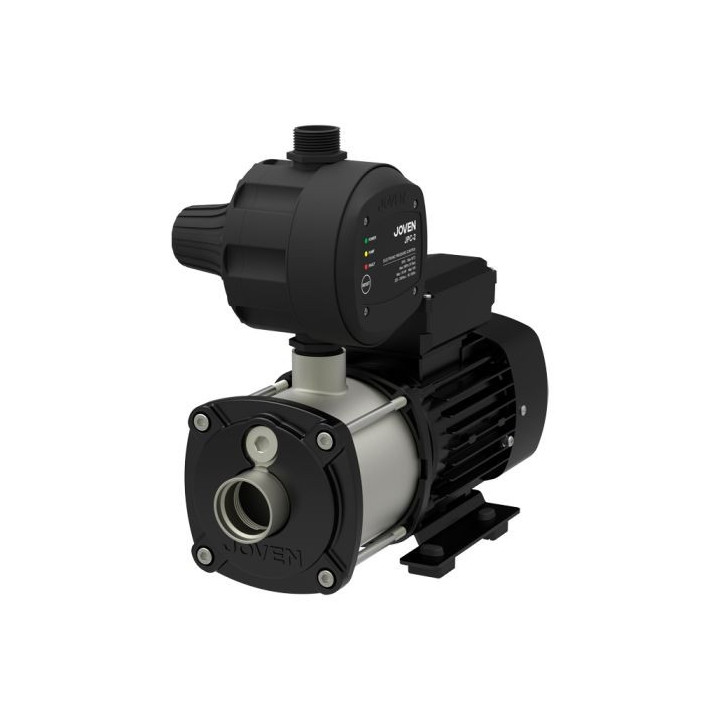

The Joven JHP 4-50 is a high-performance multistage centrifugal booster pump designed to provide consistent, powerful water pressure for homes with 4 to 5 bathrooms. Engineered with premium materials including SUS316 impellers and SUS304 housing, it ensures durability and rust-free operation. This quiet, lightweight unit features built-in dry-run protection and motor overheating safety, providing a reliable, silent solution for household water pressure management. Easy to install, it comes with essential mounting accessories and couplings for seamless setup.
Key Features

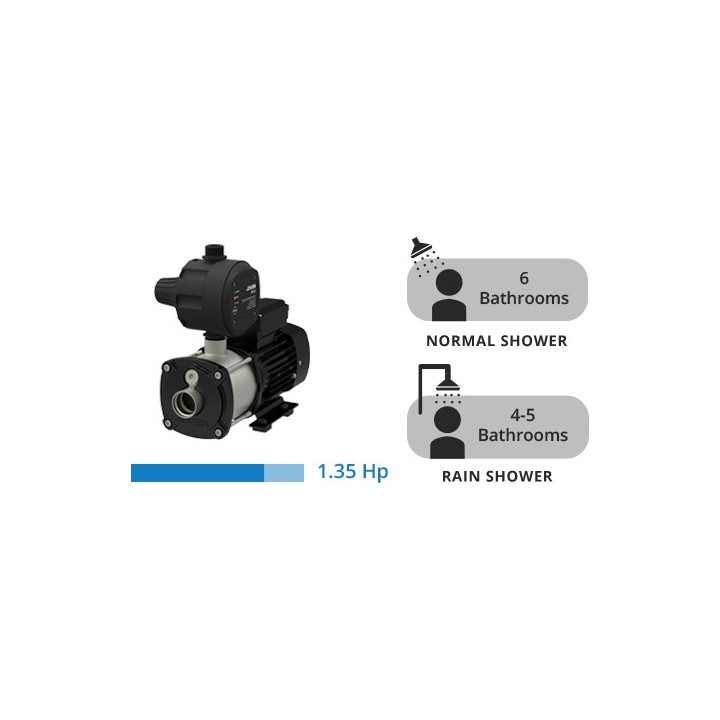

- Powerful 1.35HP motor suitable for homes with 4-5 bathrooms

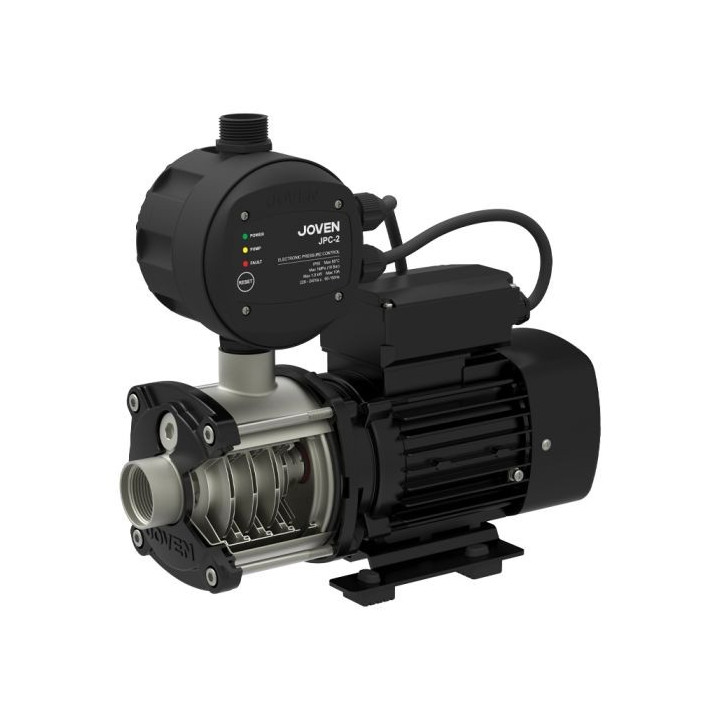

- Multistage centrifugal design for quiet and efficient performance
- Premium materials: SUS316 Impellers, SUS304 Housing, and Silicon Carbide Mechanical Seal
- Integrated dry-run protection and thermal motor overheating cutoff
- IP55 splash-proof casing for enhanced durability
- Includes anti-vibration rubber mounting bracket for stable, silent operation
- Includes inlet/outlet couplings and plug with cable for easy installation
Specifications
| Specification | Detail |
|---|
| SKU | 5130409001 |
| Power Rating | 1.00kW / 1.35Hp |
| Maximum Output | 4.8 bar or 480kPa |
| Dimensions (L x W x H) | 380 x 198 x 332 mm |
| Pipe Connection (Inlet/Outlet) | 1 1/4” / 1” |
| Material | SUS 304 Housing, SUS 316 Impellers, ABS Plastic Housing |
| Net Weight | 13.7kg |
| IP Rating | IP55 |
Notes
- Package weight and dimensions are estimated (approx. 20% increase over net weight/size) to account for protective packaging materials and shipping requirements, as official carton specifications were not provided.
Warnings

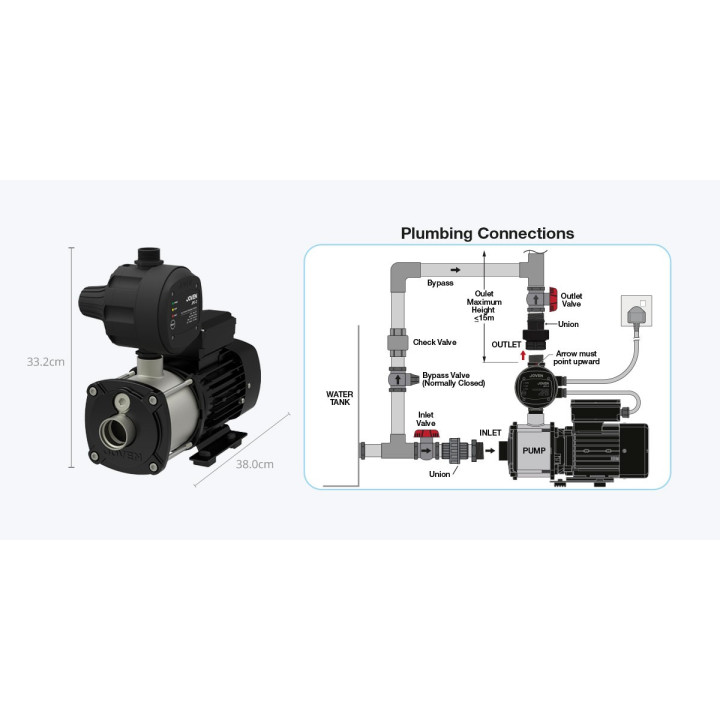

- Ensure the flow direction arrow on the pump points upward during installation as per the plumbing diagram.
- The pump must be installed with a bypass valve and check valve configuration for serviceability and to prevent dry-running.
- Electrical installation should be performed by a qualified technician to ensure safety and compliance.
Tips & Tricks
- Use the provided rubber mounting bracket to minimize vibration and noise transmission to the floor.
- Regularly inspect the pump and plumbing connections for any potential leaks during routine maintenance.
- Ensure proper ventilation around the pump area to prevent heat buildup during extended operation.
