Product Overview

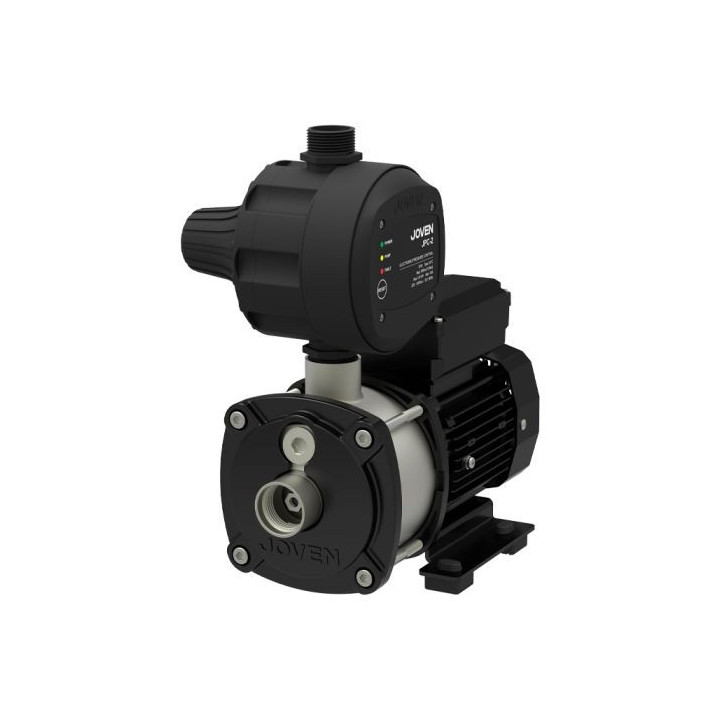

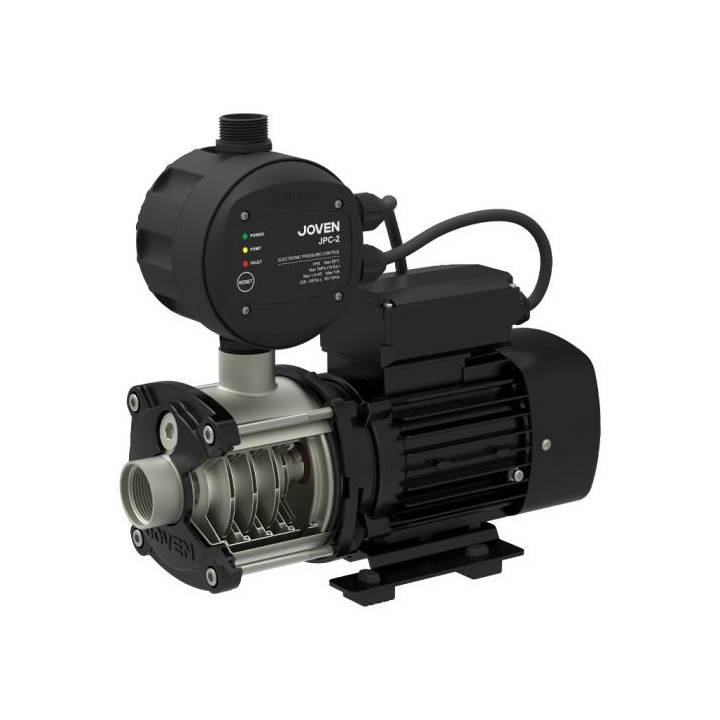

The Joven JHP 2-30 is a high-performance multistage centrifugal booster pump engineered to provide consistent water pressure for homes with 1-2 bathrooms. Featuring durable SUS316 impellers and a SUS304 housing, this silent, lightweight pump ensures long-lasting reliability. Equipped with advanced dry-run and motor overheating protection, it offers safe and efficient operation. Complete with anti-vibration rubber mountings and simple coupling installations, it is the ideal solution for upgrading household water flow.
Key Features

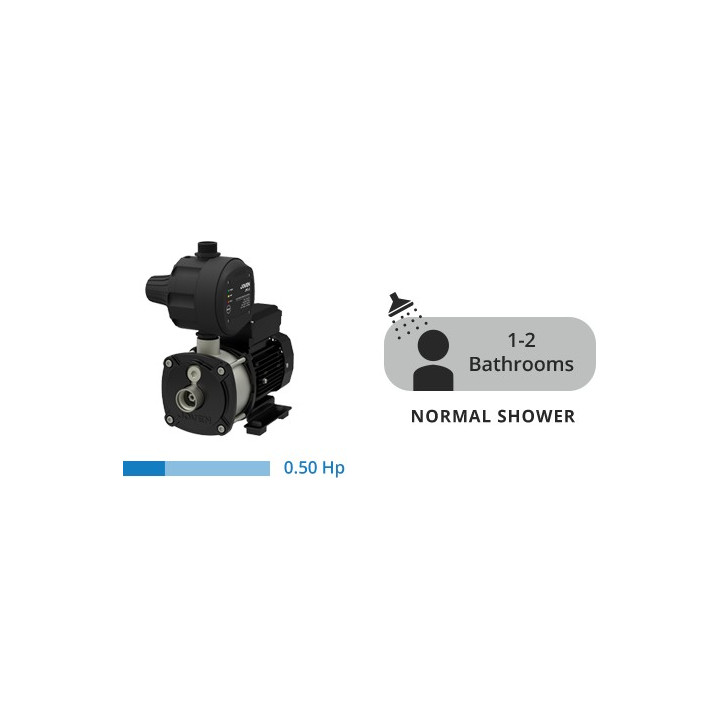

- Boosts water pressure for the entire house, suitable for 1-2 bathrooms
- Constructed with rust-free materials: SUS316 Impellers, SUS304 Housing, and Silicon Carbide Mechanical Seal
- Silent and powerful multistage centrifugal performance
- Safety features include dry-run protection and motor overheating protection
- Complies with IP55 splash-proof standard
- Anti-vibration rubber mounting for quiet operation and balance
- Includes coupling at inlet/outlet for easy installation and service
- Pre-wired with power cable and plug
Specifications
| Specification | Detail |
|---|
| Power Rating | 0.37kW / 0.50Hp |
| Maximum Output | 2.8 bar (280kPa) |
| Net Dimensions (L x W x H) | 318 x 198 x 332 mm |
| Pipe Connection (BSP) | 1 inch Inlet / 1 inch Outlet |
| Material Construction | SUS 304 Housing, SUS 316 Impellers, ABS Plastic Housing |
| Net Weight | 9.2kg |
| IP Rating | IP55 Splash Proof |
Notes
- Package weight and dimensions are estimated based on product net specifications (9.2kg, 318x198x332mm) plus protective packaging for safe transit.
- The product includes an instruction manual and a local product warranty card.
Warnings

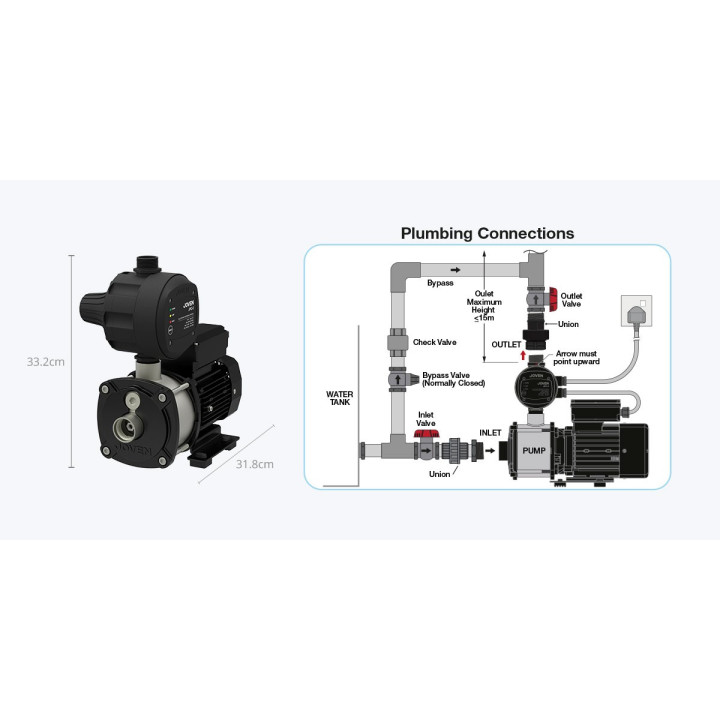

- Installation must be performed by a qualified plumber or professional.
- Ensure the inlet pipe has a check valve installed to prevent backflow.
- Verify that the arrow on the pump union points in the direction of water flow (upward).
- Maintain a clear area around the pump for heat dissipation and ventilation.
- The pump must be protected from direct weather elements despite the IP55 rating.
Tips & Tricks
- Use the provided anti-vibration rubber mounting bracket to secure the pump for quiet, stable operation.
- Utilize the provided couplings to allow for easy dismantling of pipes during future maintenance or servicing.
- Ensure the bypass valve remains in a closed position during normal operation.
