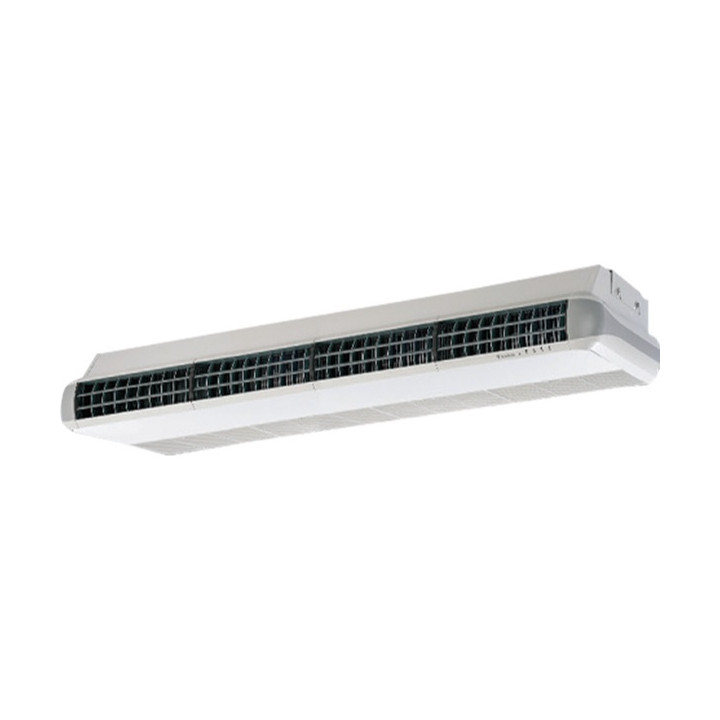

Daikin R32 Non-Inverter 4HP Ceiling Exposed Aircond FHC100A/RC100B-3CE-L

Name: Daikin R32 Non-Inverter 4HP Ceiling Exposed Aircond FHC100A/RC100B-3CE-L
Brand: Daikin
SKU: FHC100A/RC100B-3CE-L
Price: 5599 MYR
Availability: InStock

Daikin

RM5,599.00

No tax

The Daikin FHC-A Series Ceiling Exposed R32 air conditioner offers unparalleled flexibility with options for ceiling or low wall installation. Enjoy powerful, even cooling across your space thanks to a far air throw up to 16.5m. Designed for durability, its outdoor blue fin heat exchanger resists corrosion. High-performance R32 compressors ensure efficiency, while easy serviceability and auto-restart provide convenience and peace of mind. A perfect blend of robust performance and adaptability for any interior.

EASY SERVICIBILITY
FAR AIR THROW
OUTDOOR BLUE FINS
HIGH PERFORMANCE R32 COMPRESSOR
DESIGN AND INSTALLATION FLEXIBILITY
AUTO RESTART

Specifications

Specification	Detail
Indoor Model / Outdoor Model	FHC50AV1M9 / RC50BV1M / FHC60AV1M9 / RC60BV1M / FHC85AV1M9 / RC85BV1M / FHC100AV1M9 / RC100BV1M / FHC125AV1M / RC125BY1M9 / FHC140AV1M / RC140BY1M9 / FHC160AV1M / RC160BY1M9
Type	Non Inverter
Refrigerant	R32
Rated Cooling Capacity (Btu/h)	FHC50AV1M9: 18,500 / FHC60AV1M9: 23,500 / FHC85AV1M9: 29,500 / FHC100AV1M9: 36,000 / FHC125AV1M: 42,000 / FHC140AV1M: 46,000 / FHC160AV1M: 55,000
Rated Power Consumption (W)	FHC50AV1M9: 1,785 / FHC60AV1M9: 2,220 / FHC85AV1M9: 2,860 / FHC100AV1M9: 3,250 / FHC125AV1M: 3,860 / FHC140AV1M: 4,300 / FHC160AV1M: 5,500
Rated Running Current (A)	FHC50AV1M9: 8.05 / FHC60AV1M9: 9.88 / FHC85AV1M9: 12.8 / FHC100AV1M9: 14.7 / FHC125AV1M: 7.14 / FHC140AV1M: 7.93 / FHC160AV1M: 9.62
CSPF (Wh/Wh)	FHC50AV1M9: 3.23 / FHC60AV1M9: 3.29 / FHC85AV1M9: 3.21 / FHC100AV1M9: 3.45 / FHC125AV1M: 3.39 / FHC140AV1M: 3.33 / FHC160AV1M: 3.11
Air Flow Rate (CFM)	FHC50AV1M9: 620 / FHC60AV1M9: 620 / FHC85AV1M9: 830 / FHC100AV1M9: 1,125 / FHC125AV1M: 1,125 / FHC140AV1M: 1,125 / FHC160AV1M: 1,460
Power Source (V/Ph/Hz)	FHC50AV1M9 to FHC100AV1M9: 220-240/1/50 / FHC125AV1M to FHC160AV1M: 380-415/3/50
Sound Pressure Level - Indoor (H/M/L) (dBA)	FHC50AV1M9: 47/46/43 / FHC60AV1M9: 47/46/43 / FHC85AV1M9: 48/45/42 / FHC100AV1M9: 52/50/48 / FHC125AV1M: 52/50/48 / FHC140AV1M: 52/50/48 / FHC160AV1M: 55/53/50
Dimension - Indoor (H x W x D) (mm)	FHC50AV1M9: 235 x 1203 x 680 / FHC60AV1M9: 235 x 1553 x 680 / FHC85AV1M9: 235 x 1903 x 680 / FHC100AV1M9 to FHC160AV1M: 285 x 1903 x 680
Dimension - Outdoor (H x W x D) (mm)	RC50BV1M to RC85BV1M: 615 x 845 x 300 / RC100BV1M: 695 x 930 x 350 / RC125BY1M9 to RC160BY1M9: 852 x 1030 x 400
Unit weight - Indoor (kg)	FHC50AV1M9: 33 / FHC60AV1M9: 33 / FHC85AV1M9: 41 / FHC100AV1M9: 50 / FHC125AV1M: 50 / FHC140AV1M: 50 / FHC160AV1M: 60
Unit weight - Outdoor (kg)	RC50BV1M: 40 / RC60BV1M: 46 / RC85BV1M: 53 / RC100BV1M: 62 / RC125BY1M9: 79 / RC140BY1M9: 84 / RC160BY1M9: 94
Copper Pipe Size - Liquid (mm)	FHC50AV1M9 to FHC100AV1M9: 6.35 / FHC125AV1M to FHC160AV1M: 9.52
Copper Pipe Size - Gas (mm)	FHC50AV1M9 to FHC60AV1M9: 12.7 / FHC85AV1M9 to FHC100AV1M9: 15.88 / FHC125AV1M to FHC160AV1M: 19.05
Controller	Wireless (Standard) & Wired (Optional)
Retail Sales Price (RM)	FHC50AV1M9: 3,190.00 / FHC60AV1M9: 3,550.00 / FHC85AV1M9: 4,220.00 / FHC100AV1M9: 5,490.00 / FHC125AV1M: 5,830.00 / FHC140AV1M: 6,360.00 / FHC160AV1M: 7,100.00
