Panasonic 8" Wall Mount Automatic Shutter Ventilating Fan FV-20AUM8| Macro Store
Panasonic 8" Wall Mount Automatic Shutter Ventilating Fan FV-20AUM8| Macro Store
Panasonic 8" Wall Mount Automatic Shutter Ventilating Fan FV-20AUM8| Macro Store

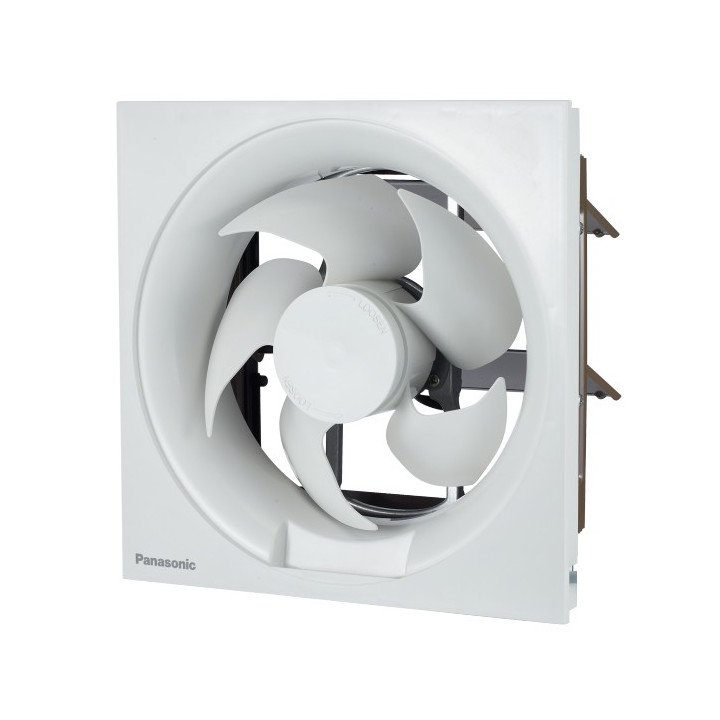

Panasonic 8" Wall Mount Automatic Shutter Ventilating Fan FV-20AUM8

Panasonic
RM149.00 (Save RM21.00)
RM128.00
No tax
The Panasonic Wall Mount Automatic Shutter Ventilating Fan Series features the advanced Silent Stream Fan design, delivering exceptionally quiet and high-volume airflow. Engineered to efficiently eliminate moisture, pollutants, and kitchen grease, these durable units are equipped with a high-performance, well-lubricated HP motor, a steel frame, and a secure thermal safety fuse. The integrated oil catcher and automatic shutter make it a reliable choice for pristine indoor air quality.
Pre-order
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Key Features

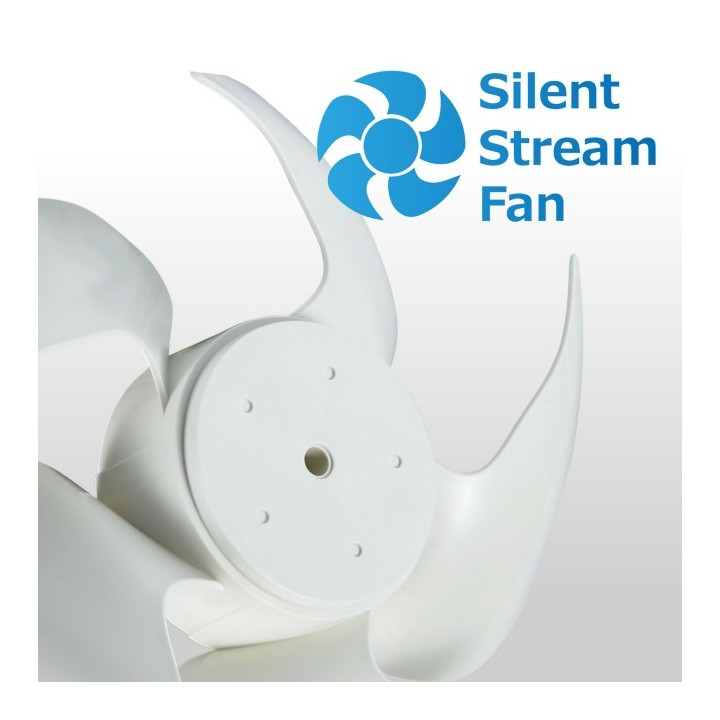

  • Silent Stream Fan: New aerodynamic blade design optimizes the blade shape to minimize operational noise while significantly increasing airflow volume.
  • Automatic Shutter: Seamlessly coordinates operation with the wall mount auto-shutter system.
  • High-Performance Motor: HP motor equipped with a well-lubricated ball bearing ensures a long and reliable operating life.
  • Robust Construction: Built with a highly durable steel frame and shutter assembly.
  • Integrated Oil Catcher: Includes an oil receptacle to collect grease runoff, making it ideal for installations in residential kitchens.
  • IPX4 Water Resistance: Outer unit boasts IPX4 water resistance class protection for reliable outdoor durability.
  • Motor Insulation Class B: Designed to withstand elevated internal temperatures safely.

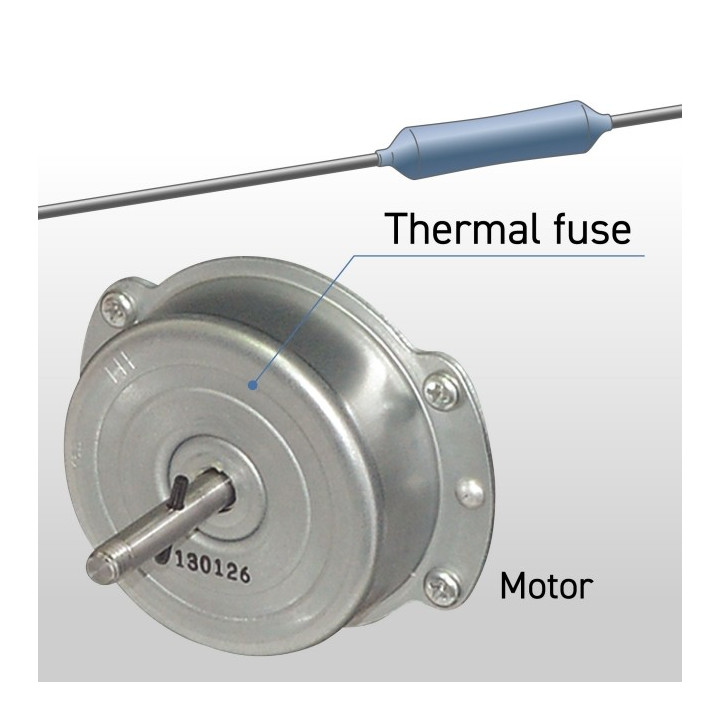

  • Highly Secure Fuse: Features an integrated thermal safety fuse that cuts off electricity during power or current spikes to prevent hazards.
  • Government Specification Compliance: Suitable for demanding government and infrastructure specifications (applicable to FV-20AUM8 and FV-30AUM8 models).

Specifications

SpecificationDetail
Models CoveredFV-20AUM8 / FV-25AUM7 / FV-30AUM8
Fan Size (cm)FV-20AUM8: 20 / FV-25AUM7: 25 / FV-30AUM8: 30
Air Volume (CMH)FV-20AUM8: 540 / FV-25AUM7: 900 / FV-30AUM8: 1235
Air Volume (CFM)FV-20AUM8: 318 / FV-25AUM7: 530 / FV-30AUM8: 727
Power Consumption (W)FV-20AUM8: 17 / FV-25AUM7: 29 / FV-30AUM8: 33
Noise Level (dB[A])FV-20AUM8: 37 / FV-25AUM7: 39 / FV-30AUM8: 45
Installation Space (mm)FV-20AUM8: 250 x 250 / FV-25AUM7: 300 x 300 / FV-30AUM8: 350 x 350
Weight (kg)FV-20AUM8: 2.3 / FV-25AUM7: 2.7 / FV-30AUM8: 3.0
Fan Speed (RPM)FV-20AUM8: 1205 / FV-25AUM7: 1110 / FV-30AUM8: 980
Frame and Shutter MaterialSteel frame and shutter
Motor TypeHP motor with well lubricated ball bearing
Water Resistance RatingIPX4 (outside)
Motor Insulation ClassClass B
Infrastructure Standards ComplianceSuitable for government and infrastructure specifications (For FV-20AUM8 and FV-30AUM8 only)
Key FeaturesOil catcher, Thermal Safety Fuse, Silent Stream Fan
