| Model No. |
AS25E4KAA, AS20E4KAA, AS13E4KAA, AS10E4KAA |
| Type |
Inverter |
| HP |
2.5HP, 2.0HP, 1.5HP, 1.0HP |
| Cooling Capacity (Btu/h) |
24,000, 19,000, 13,000, 9,550 |
| Rated Input-Cooling (W) |
2,150, 1,800, 1,480, 900 |
| Air Circulation (m3/h) |
1100, 950, 580, 580 |
| CSPF (Wh/Wh) |
5.2, 4.9, 4.2, 4.5 |
| Energy Class Cooling |
5-star, 4-star, 3-star, 3-star |
| Refrigerant Type |
R32 |
| Refrigerant charge volume (g) |
950, 640, 450, 340 |
| Indoor Sound Pressure (SUP/L/M/H) (dB (A)) |
46/42/38/34, 44/38/34/31, 38/34/29/23, 36/33/29/23 |
| Outdoor Sound Pressure (dB (A)) |
56, 54, 52, 51 |
| Voltage, Frequency (V) |
220-240V~,50Hz |
| Phase |
1P |
| Rated Current Cooling (A) |
9.7, 8.1, 6.6, 4.2 |
| Maximal Pipe Length (m) |
25, 25, 20, 20 |
| Maximal Heights’ Interval (m) |
10 |

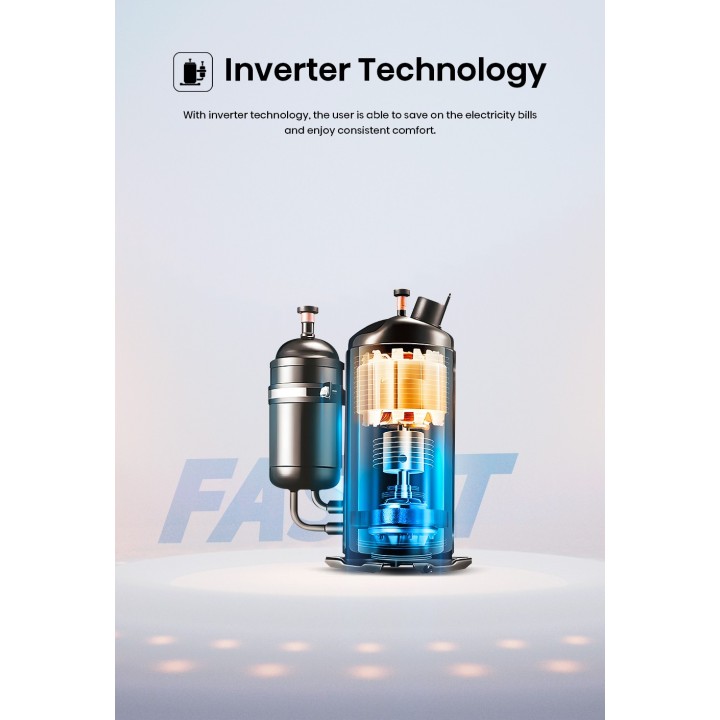

| Compressor Type |
Rotary |
| Liquid Pipe (inch) |
3/8, 1/4, 1/4, 1/4 |
| Gas Pipe (inch) |
5/8, 1/2, 3/8, 3/8 |
| WiFi Control |
Yes |

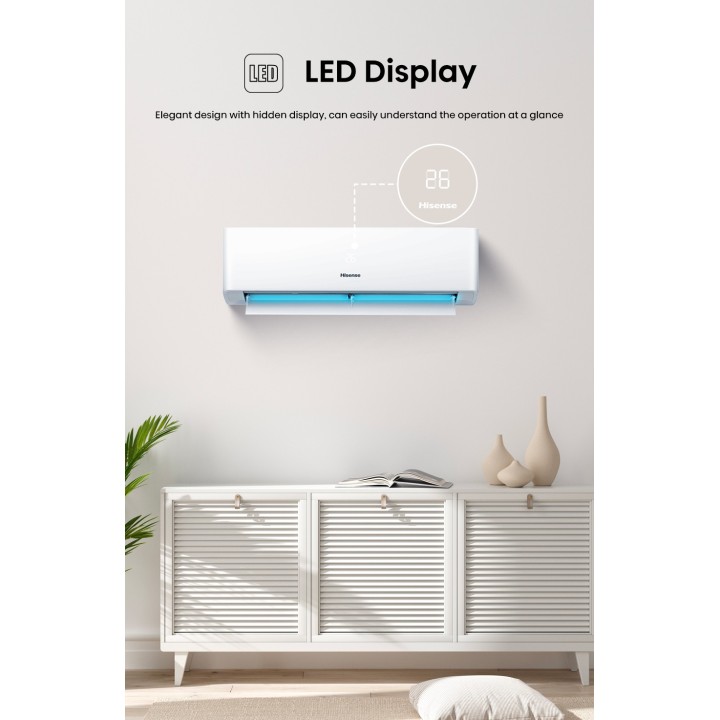

| Display |
LED |
| LCD Wireless Remote Controller |
Yes |
| Removable and Washable Panel |
Yes |
| Washable PP Filter |
Yes |
| 24 Hours Timer |
Yes |
| 5 Speed and Auto Indoor Fan Control |
Yes |
| Vertical Auto Swing Louver |
Yes |
| Horizontal Auto Swing Louver |
– |
| Sleep Operation |
Yes |
| Smart Function |
Yes |
| Super Function |
Yes |
| Auto Restart |
Yes |
| Dimmer |
Yes |
| Ionizer Filter |
– |
| Indoor Unit Packaging Dimensions W x H x D (mm) |
1120 x 390 x 315, 995 x 365 x 310, 850 x 320 x 260, 850 x 320 x 260 |
| Outdoor Unit Packaging Dimensions W x H x D (mm) |
940 x 630 x 385, 830 x 600 x 335, 770 x 530 x 315, 770 x 530 x 315 |

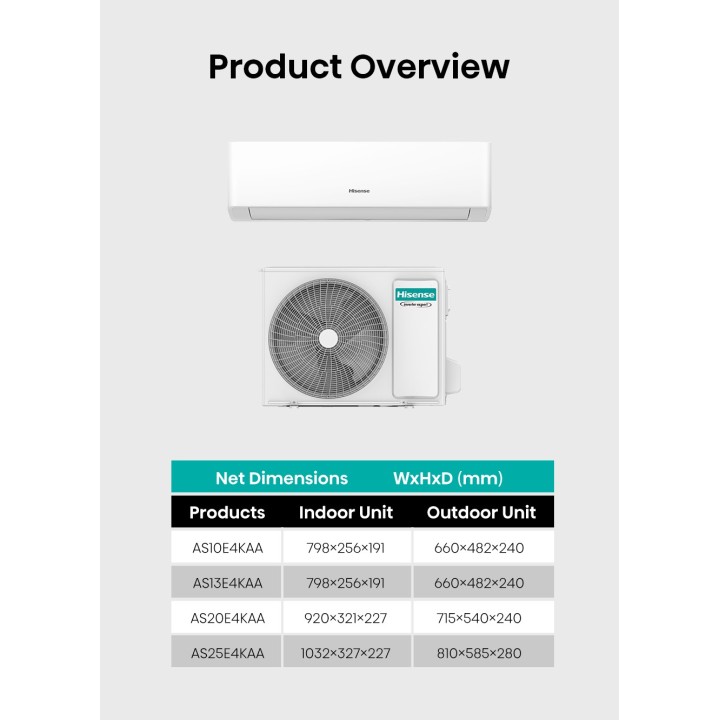

| Indoor Unit Net Dimensions W x H x D (mm) |
1032 x 327 x 227, 920 x 321 x 227, 798 x 256 x 191, 798 x 256 x 191 |
| Outdoor Unit Net Dimensions W x H x D (mm) |
810 x 585 x 280, 715 x 540 x 240, 660 x 482 x 240, 660 x 482 x 240 |
| Indoor Unit Gross Weight (KG) |
14.0, 12.5, 9.5, 8.8 |
| Outdoor Unit Gross Weight (KG) |
36.5, 26.0, 22.0, 21.0 |
| Indoor Unit Net Weight (KG) |
11.5, 10.5, 7.8, 7.3 |
| Outdoor Unit Net Weight (KG) |
33.0, 23.0, 20.0, 18.5 |
